TPE 25-50/2 A-O-A-BQQE-AWB [98525613]
TPE 25-50/2 A-O-A-BQQE-AWB [98525613]
No se pudo cargar la disponibilidad de retiro

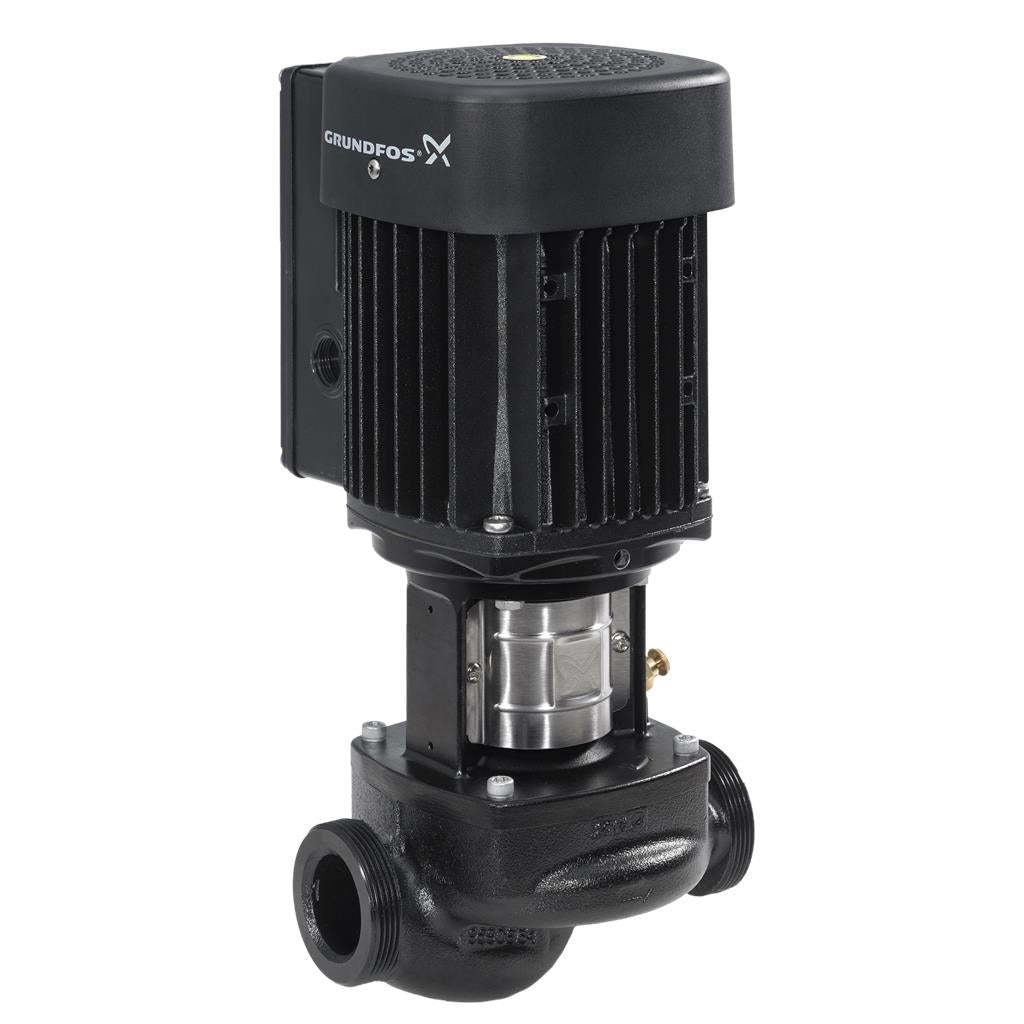

Bomba de una etapa, acoplamiento cerrado y voluta con puertos de aspiración y descarga en línea de idéntico diámetro. El diseño de la bomba incluye un sistema de extracción superior que facilita el desmontaje del cabezal motor (el motor, el cabezal de la bomba y el impulsor) con fines de mantenimiento o reparación sin necesidad de desconectar las tuberías de la carcasa de la bomba. La bomba está equipada con un cierre de fuelle de caucho no equilibrado. El cierre mecánico satisface los requisitos establecidos por la norma EN 12756. La bomba está equipada con un motor síncrono de imanes permanentes refrigerado por ventilador. El nivel de eficiencia del motor de acuerdo con la norma IEC 60034-30-2 es IE5.
Specs Table
| Controls: | |
| Frequency converter: | Built-in |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

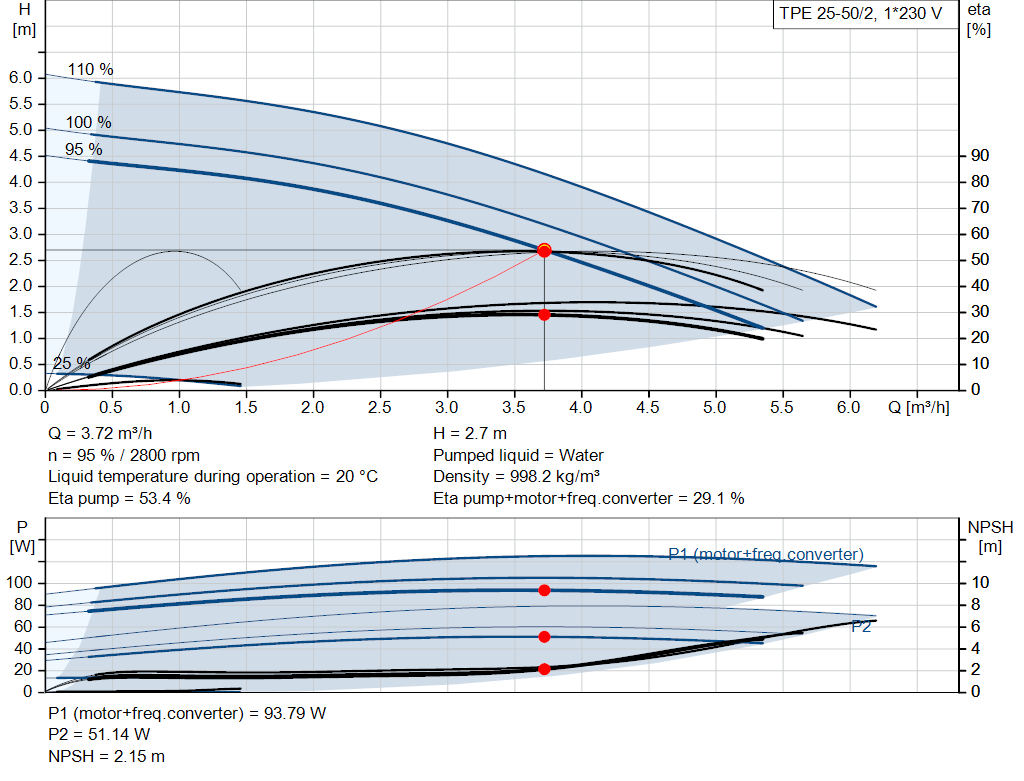

| Pump speed on which pump data are based: | 2800 rpm |
| Rated flow: | 3.72 m³/h |
| Rated head: | 2.7 m |
| Actual impeller diameter: | 68 mm |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Curve tolerance: | ISO9906:2012 3B2 |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-150 | |
| ASTM class 25 | |
| Impeller: | Composite |
| PES+30% GF | |
| Installation: | |
| Range of ambient temperature: | -20 .. 50 °C |
| Maximum operating pressure: | 10 bar |
| Max pressure at stated temp: | 10 bar / 120 °C |
| Pipe connection standard: | ISO 228-1 |
| Type of connection: | G |
| Size of connection: | DN 25 |
| 1 1/2 inch | |
| Pressure rating for connection: | PN 10 |

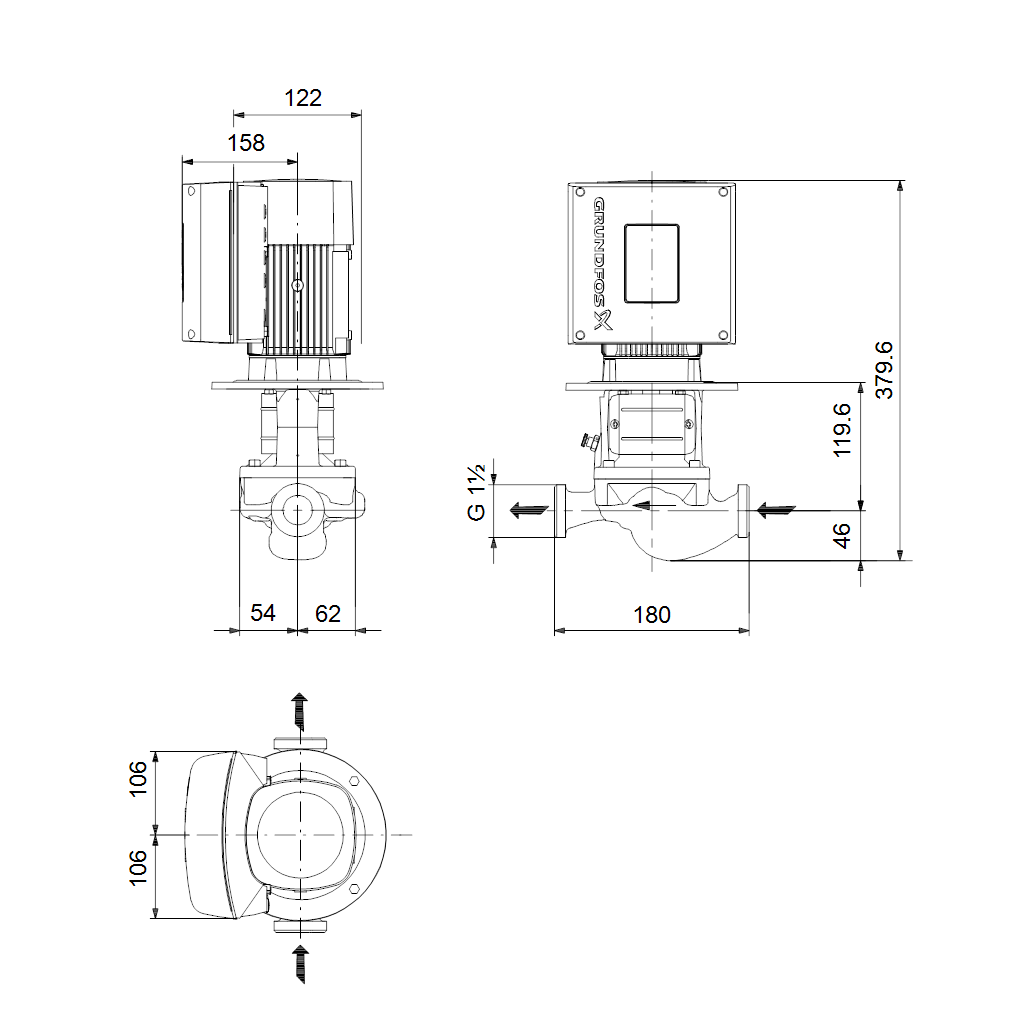

| Port-to-port length: | 180 mm |
| Flange size for motor: | FT85 |
| Electrical data: | |

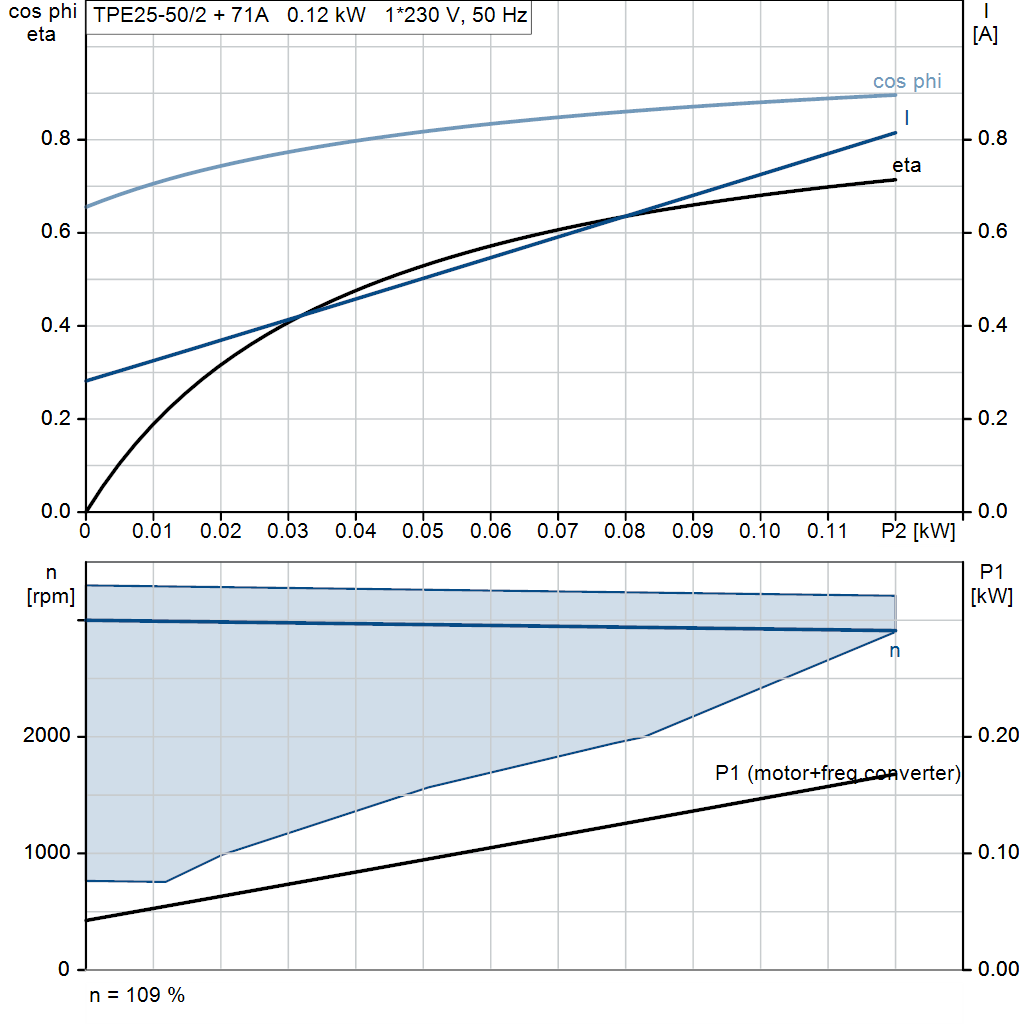

| Motor type: | 71A |
| Rated power - P2: | 0.12 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 200-240 V |
| Rated current: | 1.75-1.5 A |
| Cos phi - power factor: | 0.95 |
| Rated speed: | 360-4000 rpm |
| IE Efficiency class: | IE5 |
| Motor efficiency at full load: | 81.1 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 98667062 |
| Others: | |
| Net weight: | 12.3 kg |
| Gross weight: | 14.3 kg |
| Shipping volume: | 0.045 m³ |
| Danish VVS No.: | 382000050 |
| Finnish LVI No.: | 4616366 |
| Country of origin: | HU |
| Custom tariff no.: | 84137051 |
