SLV.80.100.40.4.51D.C [98626055]
SLV.80.100.40.4.51D.C [98626055]
Grundfos
Precio habitual
€3.865,60 EUR
Precio habitual
€4.832,00 EUR
Precio de oferta
€3.865,60 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

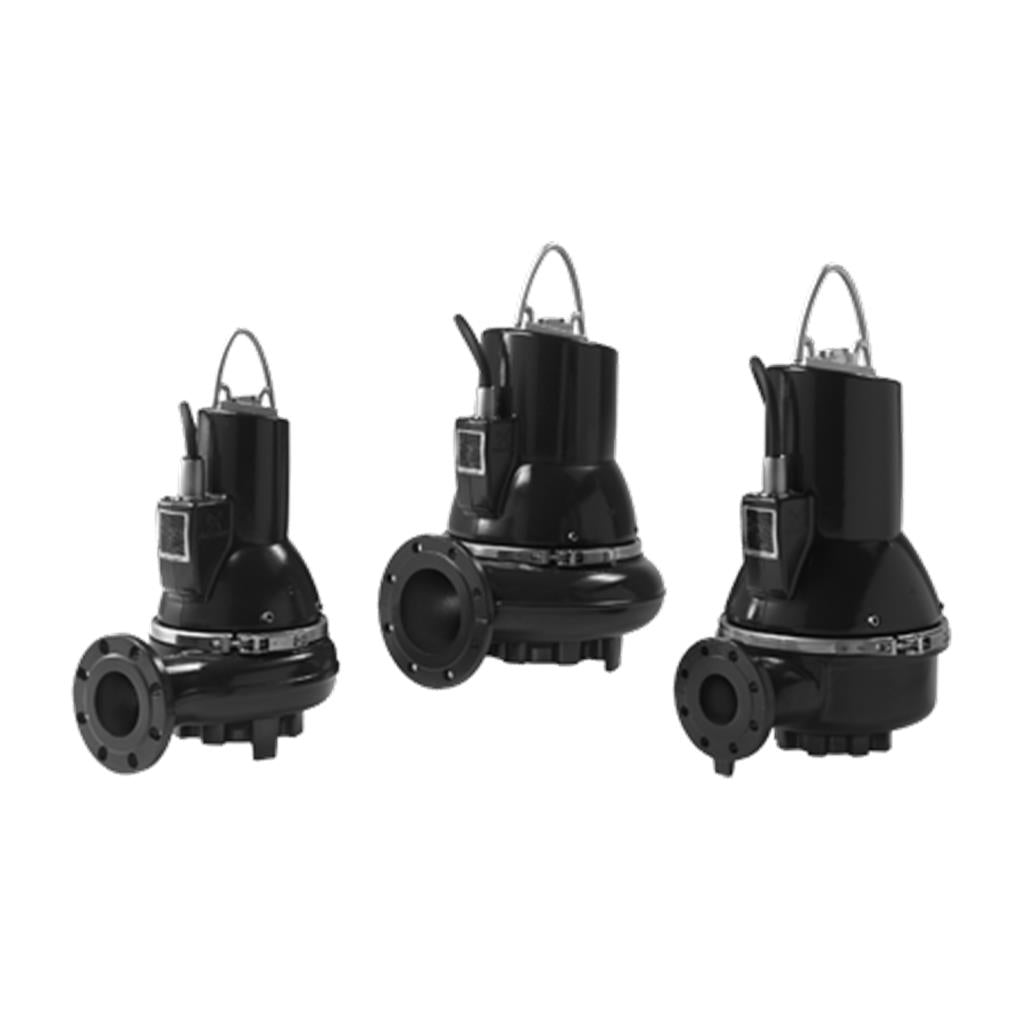

Bomba centrífuga de una etapa, no autocebante, diseñada específicamente para la gestión de aguas residuales, aguas de proceso y aguas fecales sin filtrar. La bomba está diseñada para el funcionamiento intermitente y continuo, como parte de instalaciones sumergidas. El eficiente impulsor SuperVortex admite el paso de fibras largas y sólidos de hasta 80 mm, y es apto para aguas residuales con un contenido máximo de materia seca del 5 %. Un exclusivo sistema de montaje con acoplamiento de acero inoxidable permite el desmontaje rápido y sencillo de la bomba de la unidad motriz para su inspección y mantenimiento. No se requieren herramientas especiales.
Specs Table
| Controls: | |
| Moisture sensor: | with moisture sensors |
| Water-in-oil sensor: | without water-in-oil sensor |
| Liquid: | |
| Liquid temperature range: | 0 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

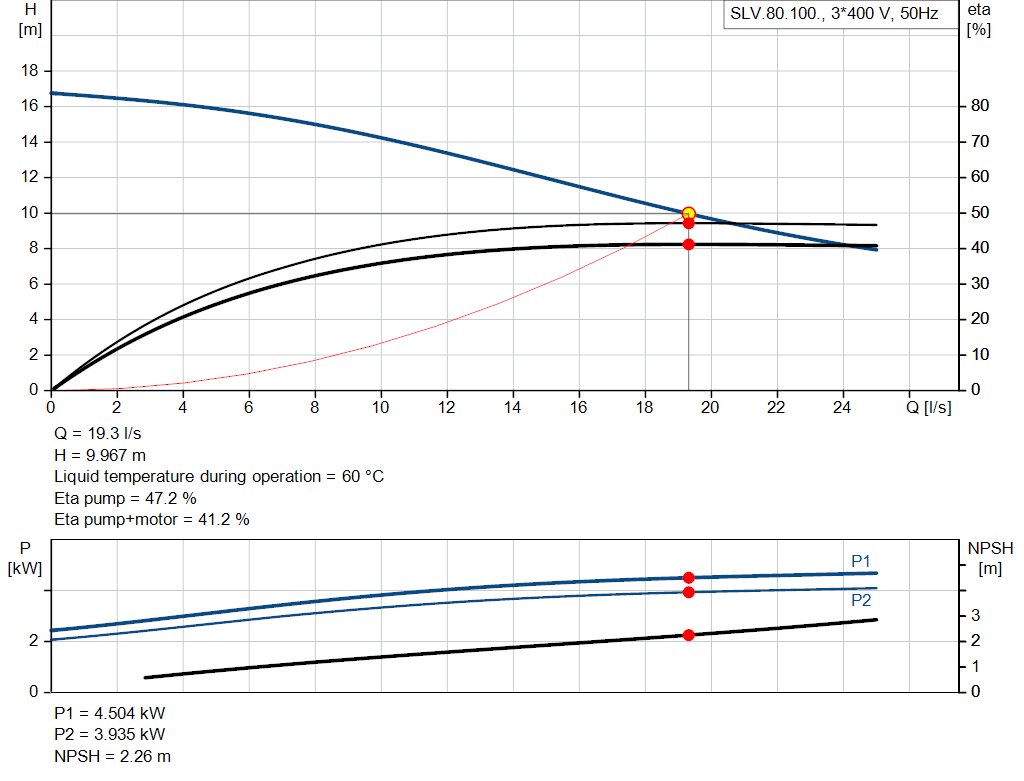

| Rated flow: | 19.3 l/s |
| Maximum flow: | 25 l/s |
| Rated head: | 9.97 m |
| Type of impeller: | SUPER VORTEX |
| Max. Particle: | 80 mm |
| Primary shaft seal: | SIC/SIC |
| Approvals: | CE EN12050-1 |
| Curve tolerance: | ISO9906:2012 3B2 |
| Cooling jacket (Yes/No): | N |
| Materials: | |
| Pump housing: | Cast iron |
| EN 5.1301 EN-GJL-250 | |
| Impeller: | Cast iron |
| EN 5.1301 EN-GJL-250 | |
| Motor: | EN-GJL-250 |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Maximum operating pressure: | 6 bar |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |

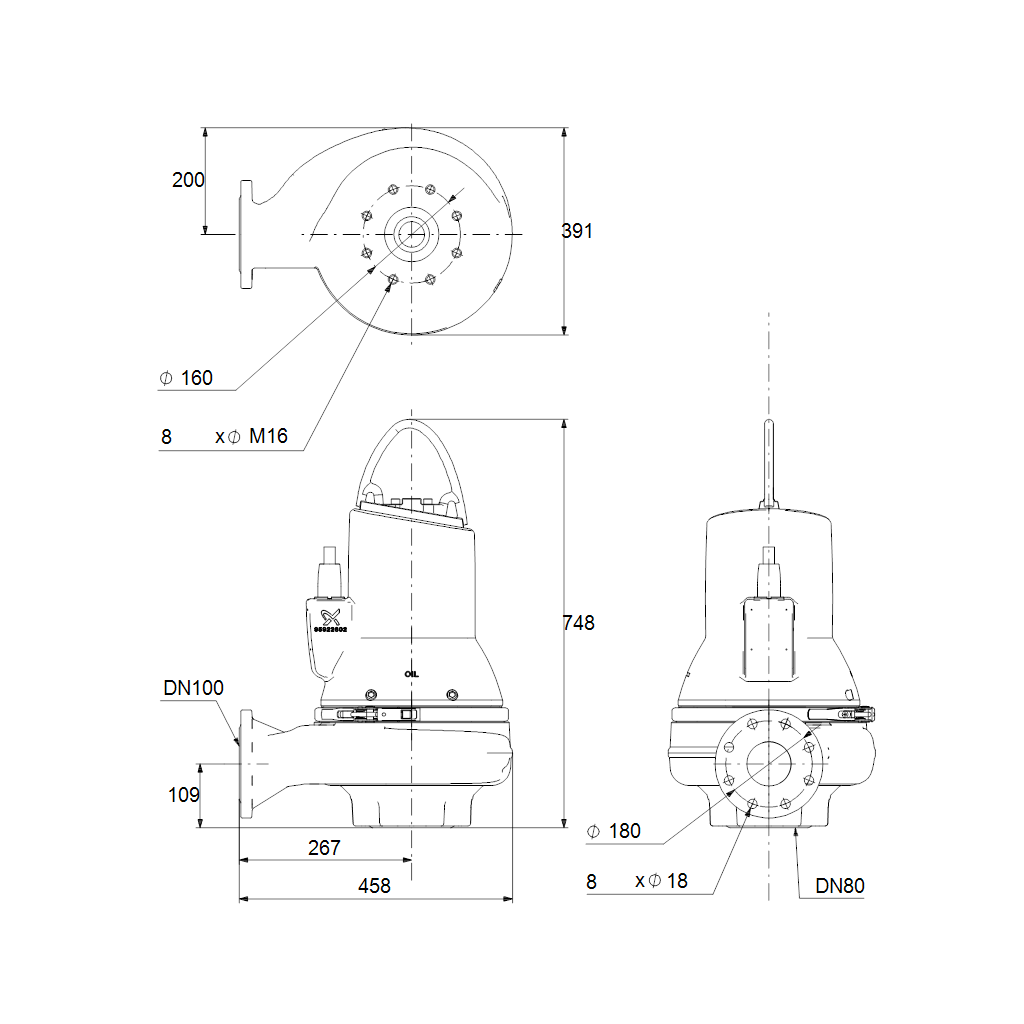

| Size of inlet connection: | DN 80 |
| Size of outlet connection: | DN 100 |
| Pressure rating for connection: | PN 10 |
| Maximum installation depth: | 7 m |
| Auto coupling: | 96090994 |
| Frame range: | C |
| Electrical data: | |
| Power input P1: | 4.8 kW |
| Rated power - P2: | 4 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415 V |
| Voltage tolerance: | +10/-10 % |
| Max starts per hour: | 20 |
| Rated current: | 9.6 A |
| Starting current: | 65 A |
| Cos phi - power factor: | 0.72 |
| Cos phi - p.f. at 3/4 load: | 0.63 |
| Cos phi - p.f. at 1/2 load: | 0.50 |
| Rated speed: | 1464 rpm |
| Motor efficiency at full load: | 87.4 % |
| Motor efficiency at 3/4 load: | 87.1 % |
| Motor efficiency at 1/2 load: | 85.0 % |
| Number of poles: | 4 |

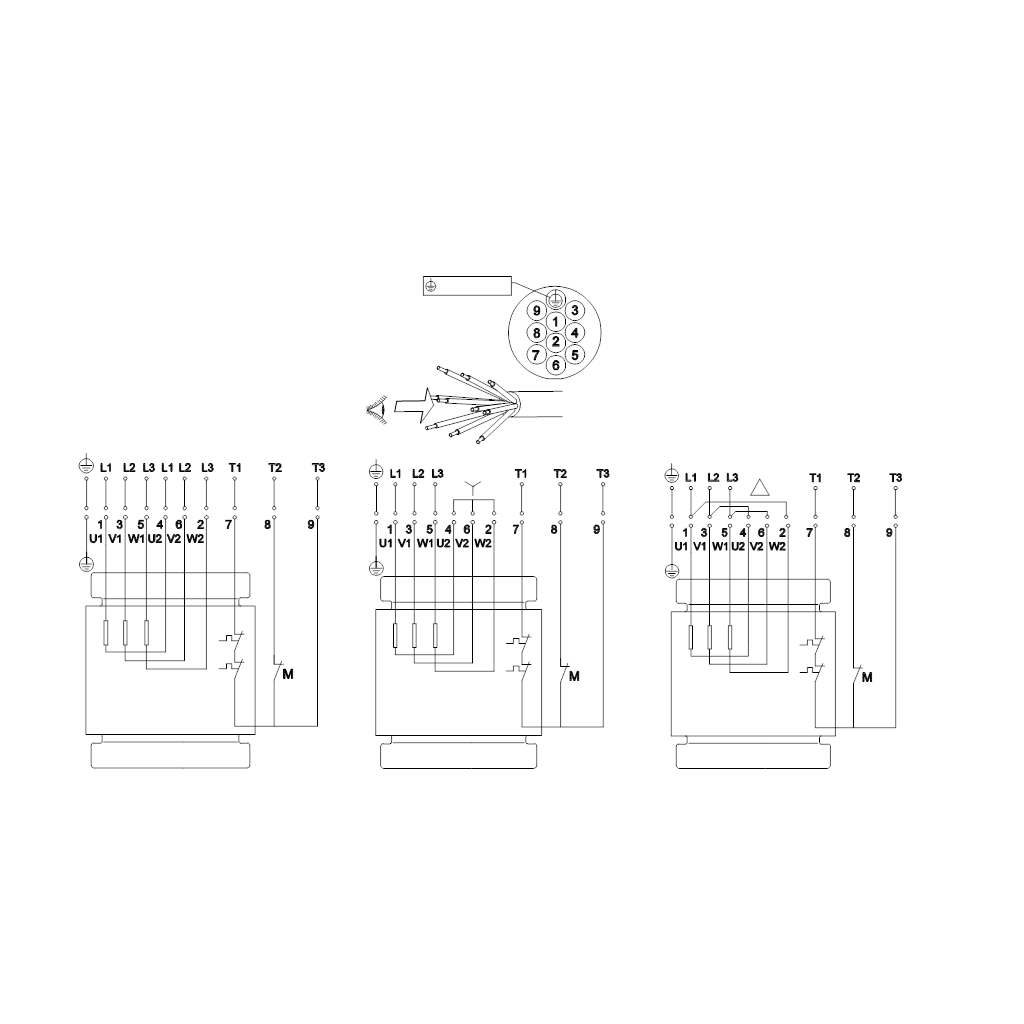

| Method of start: | SD |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | H |
| Explosion proof: | no |
| Built-in motor protection: | THERMAL SWITCH |
| Power cable type: | LYNIFLEX |
| Length of power cable: | 10 m |
| Power plug: | No plug |
| Others: | |
| Net weight: | 131 kg |
| Gross weight: | 150 kg |
| Danish VVS No.: | 391299236 |
| Country of origin: | HU |
| Custom tariff no.: | 84137021 |
