Grundfos
Precio habitual
€1.928,00 EUR
Precio habitual
€2.410,00 EUR
Precio de oferta
€1.928,00 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

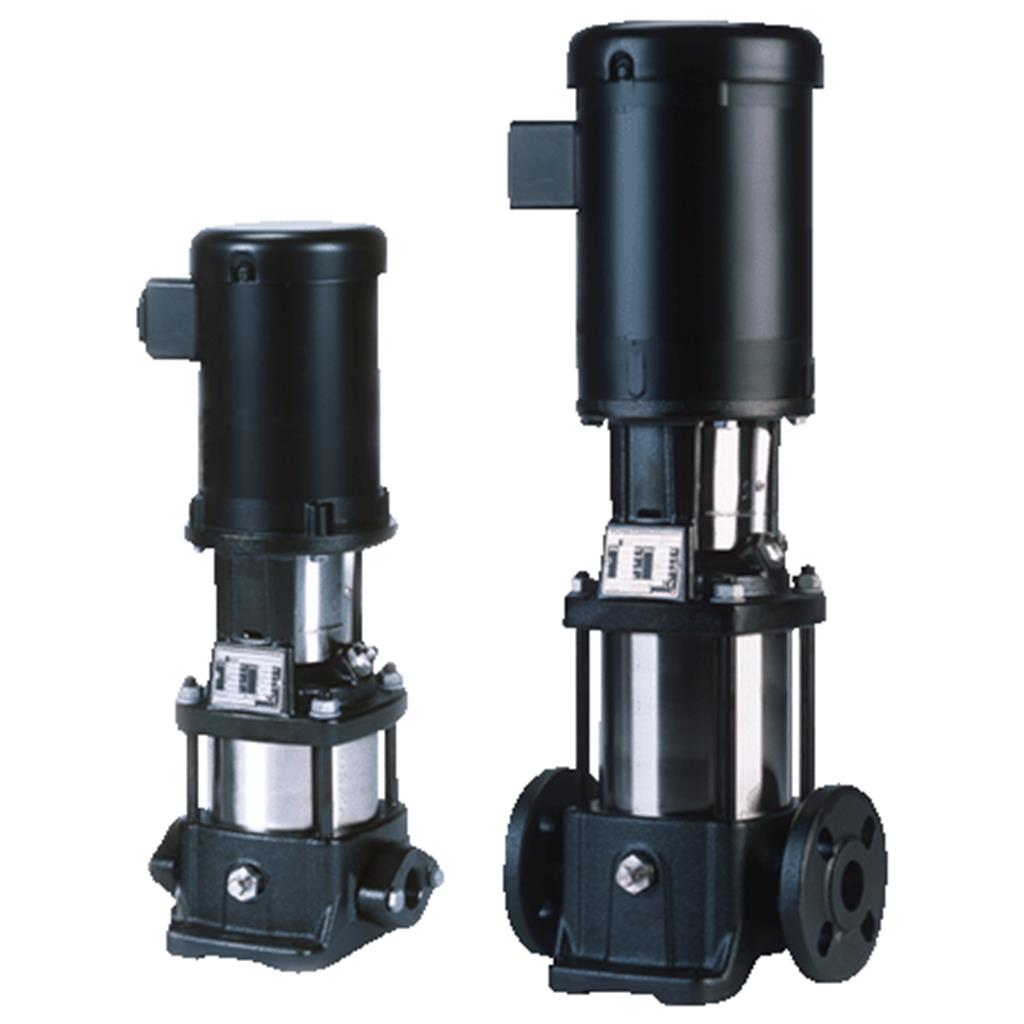

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 3450 rpm |

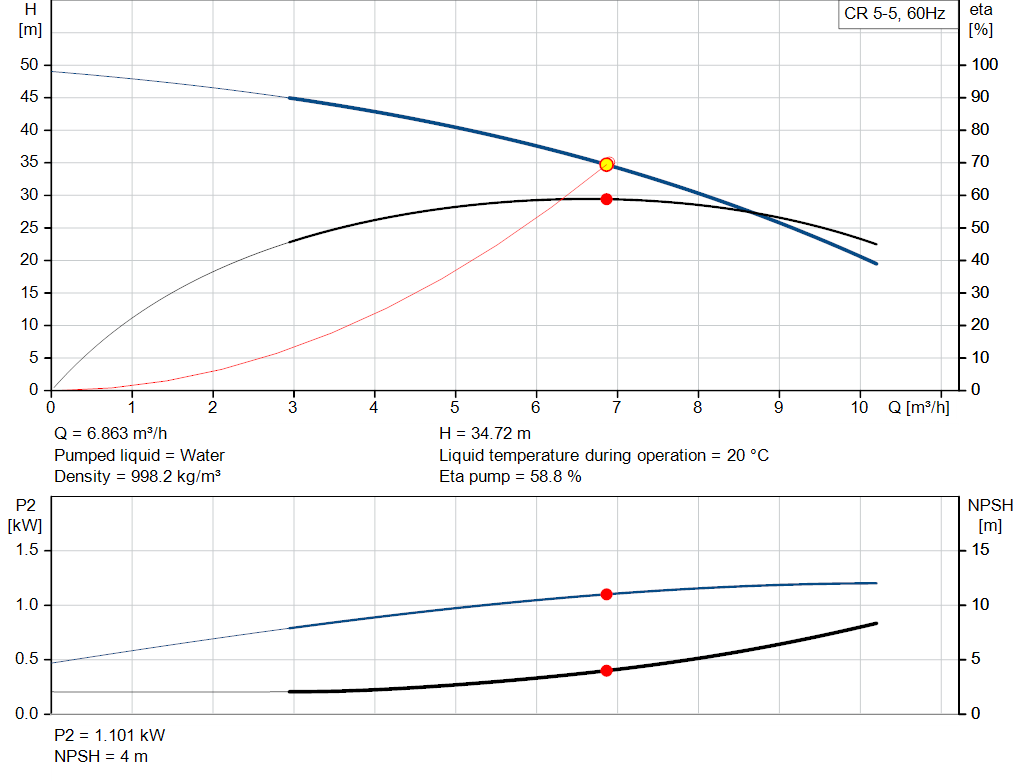

| Rated flow: | 6.9 m³/h |
| Rated head: | 35.1 m |
| Actual impeller diameter: | 73.2 mm |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CURUS |
| Approvals for drinking water: | NSF61 |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Cast iron |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 16 bar |
| Max pressure at stated temp: | 16 bar / 120 °C |
| 16 bar / -20 °C | |

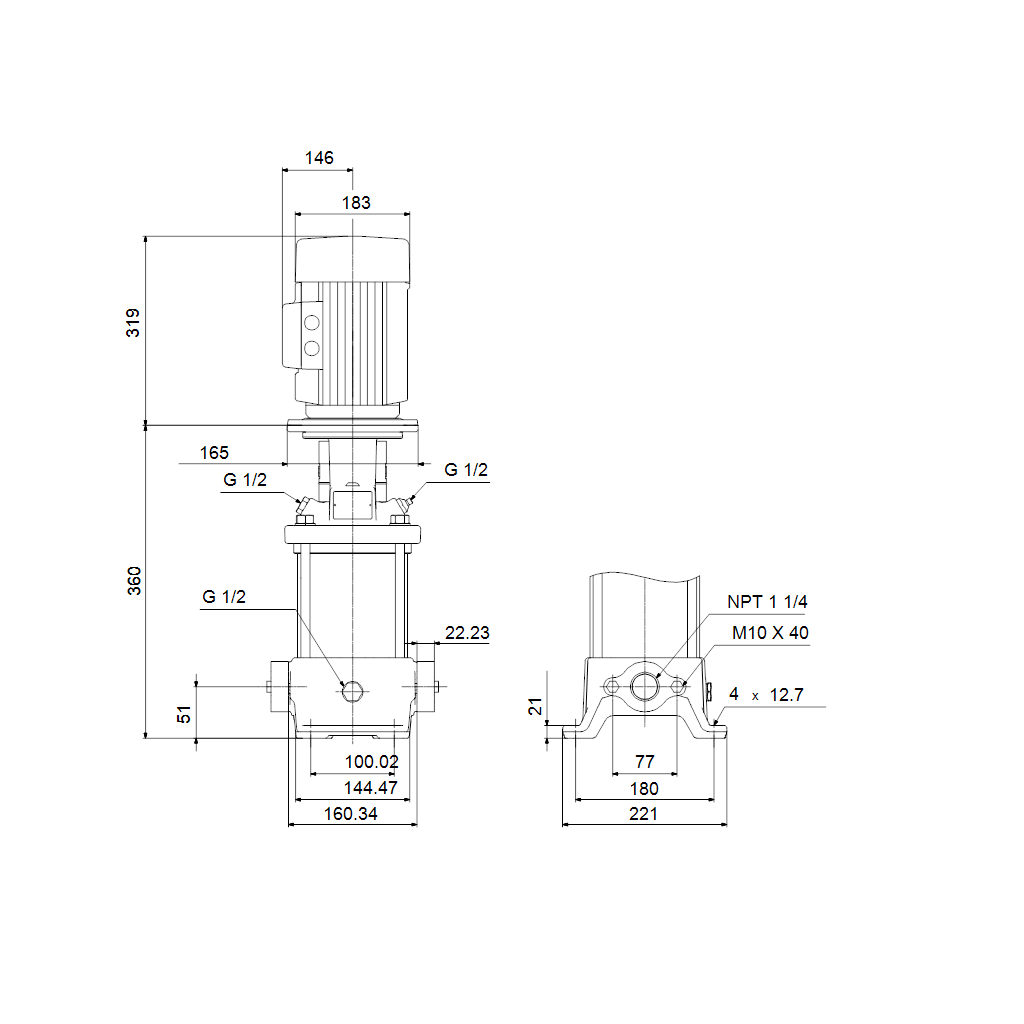

| Type of connection: | Oval / NPT(F) |
| Size of inlet connection: | 1 1/4 inch |
| Size of outlet connection: | 1 1/4 inch |
| Pressure rating for connection: | PN 16 |
| Flange size for motor: | 56C |
| Electrical data: | |
| Motor standard: | NEMA |
| Motor type: | BALDOR |
| Rated power - P2: | 1.5 kW |
| Power (P2) required by pump: | 1.5 kW |
| Mains frequency: | 60 Hz |

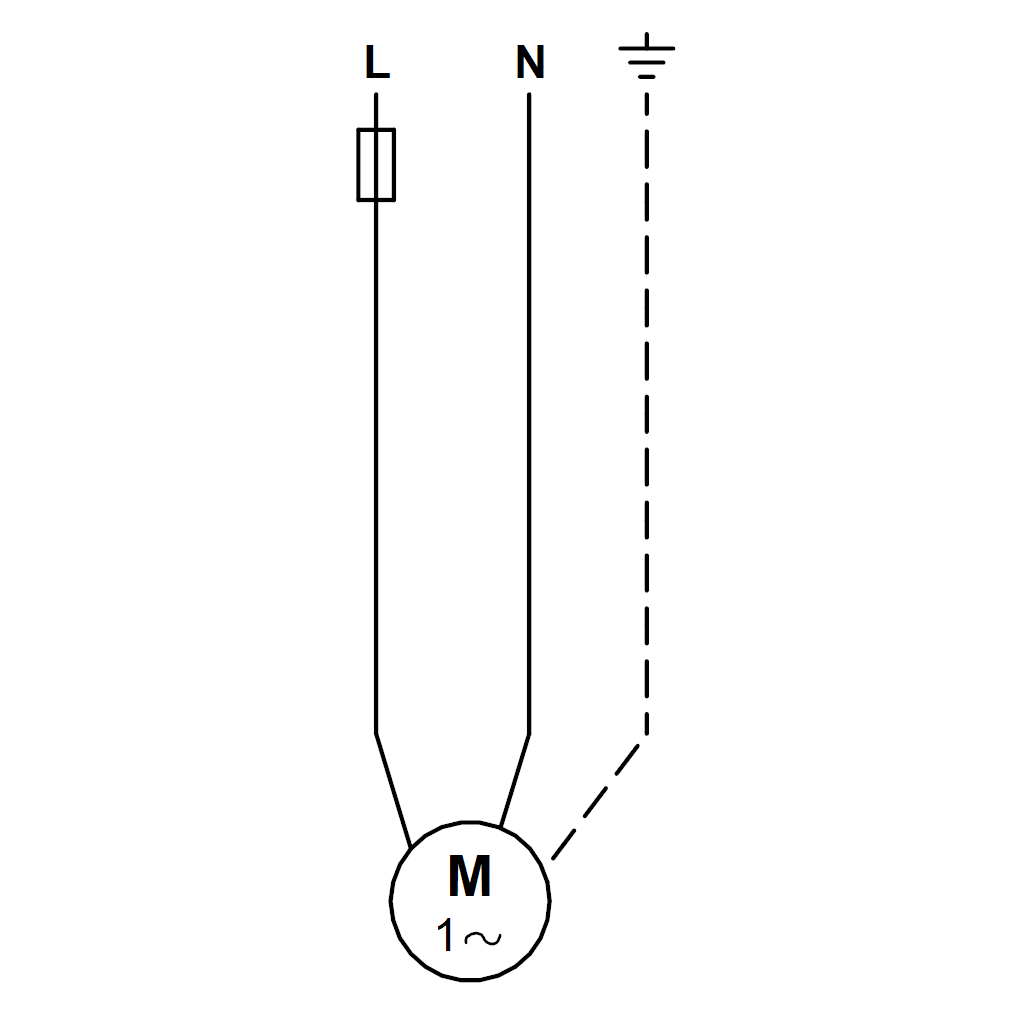

| Rated voltage: | 1 x 115/208-230 V |
| Service factor: | 1.15 |
| Rated current: | 23,0/12,7-11,5 A |
| Rated speed: | 3450 rpm |
| Motor efficiency at full load: | 74 % |
| Number of poles: | 2 |
| Insulation class (IEC 85): | F |
| Motor No: | 84Z04010 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| DOE Pump Energy Index CL: | 0.89 |
| Net weight: | 37.6 kg |
| Gross weight: | 42.6 kg |
| Shipping volume: | 0.173 m³ |
