Grundfos
Precio habitual
€3.356,50 EUR
Precio habitual
€4.795,00 EUR
Precio de oferta
€3.356,50 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

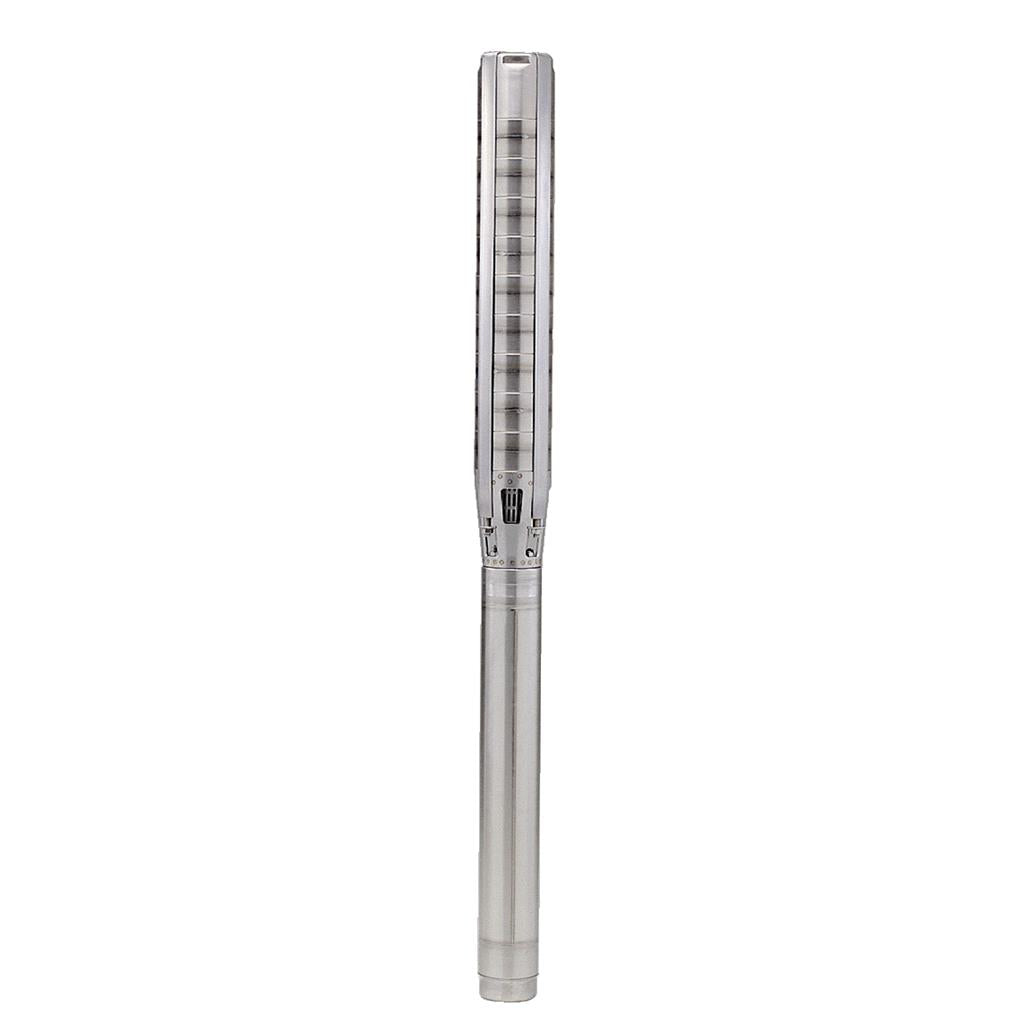

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump carries drinking water approval. The motor is not fitted with a temperature sensor. If temperature monitoring is desired, a Pt1000 sensor can be fitted. The motor is for direct-on-line starting (DOL).
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 17 m³/h |
| Rated head: | 57 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for motor: | CE,EACCE,EAC |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| 1.4301 | |
| Shaft seal: | HM/CER |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 8 bar |
| Type of connection: | Rp |
| Size of connection: | 2 1/2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 140 mm |
| Electrical data: | |
| Motor type: | MS4000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 4 kW |
| Power (P2) required by pump: | 4 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 9.75-9.60-9.80 A |
| Starting current: | 460-500-530 % |
| Cos phi - power factor: | 0.85-0.80-0.77 |
| Rated speed: | 2850-2865-2875 rpm |
| Start. method: | direct-on-line |
| Method of start: | DOL |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | EXT. |
| Built-in temp. transmitter: | N |
| Length of cable: | 1.7 m |
| Power cable type: | FLAT |
| Motor No: | 79194510 |
| Windings: | Enamelled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 35.4 kg |
| Gross weight: | 39.9 kg |
| Shipping volume: | 0.052 m³ |
| Finnish LVI No.: | 4762720 |
| Environmental approvals: | WEEE |
