NK 40-125/142 AA1F2KESBQQEEW3 [97700639]
NK 40-125/142 AA1F2KESBQQEEW3 [97700639]
Grundfos
Precio habitual
€6.869,60 EUR
Precio habitual
€8.587,00 EUR
Precio de oferta
€6.869,60 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

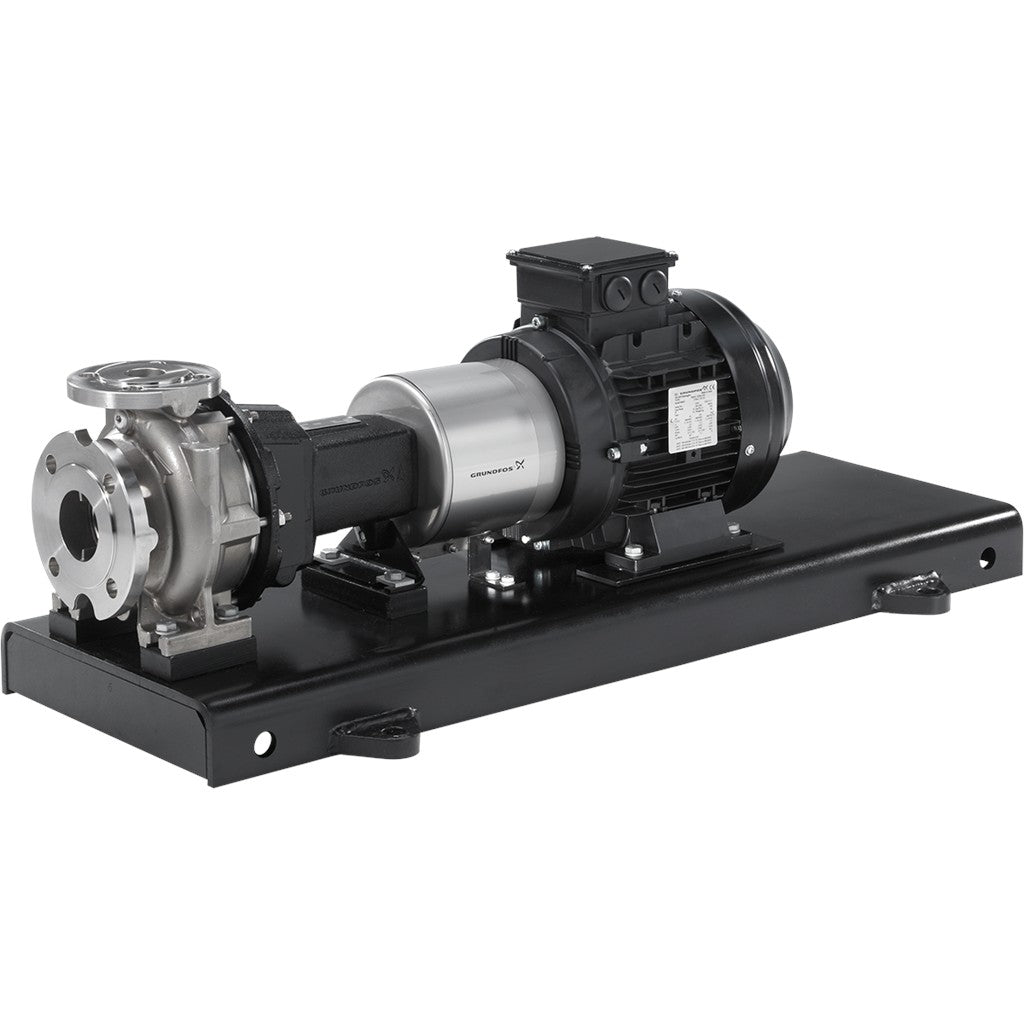

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-1. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the motor, coupling, bearing bracket and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Pressure sensor: | N |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -25 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

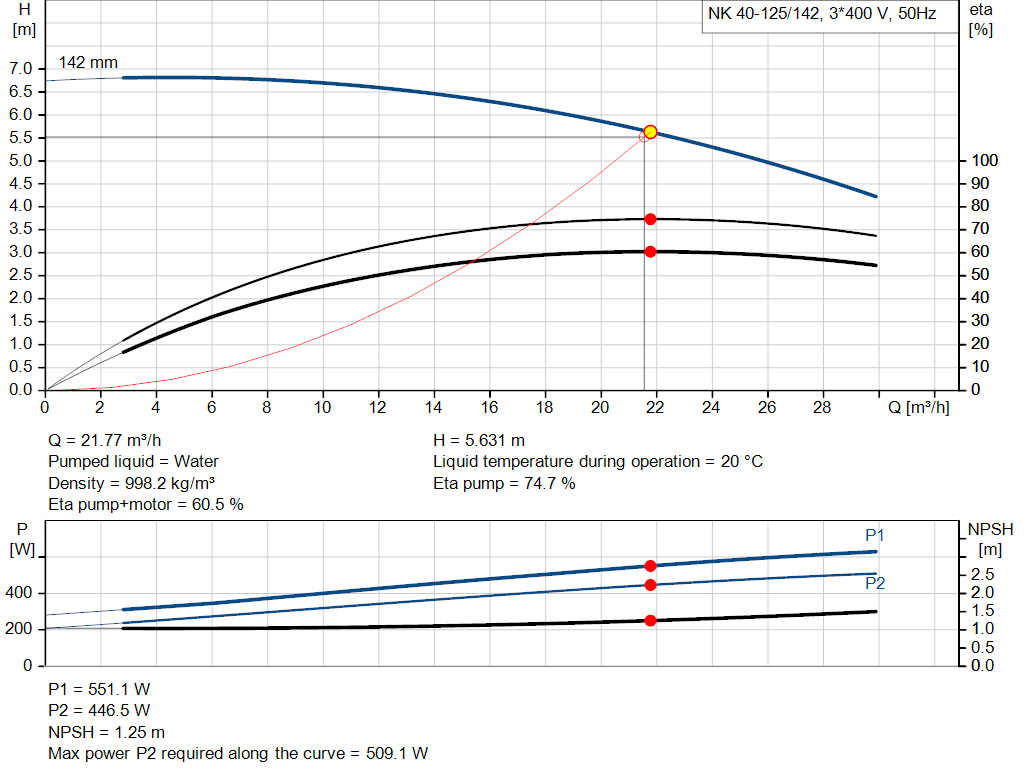

| Pump speed on which pump data are based: | 1440 rpm |
| Rated flow: | 21.55 m³/h |
| Pump with motor (Yes/No): | Y |
| Rated head: | 5.523 m |
| Actual impeller diameter: | 142 mm |
| Nominal impeller diameter: | 125 |
| Primary shaft seal: | BQQE |
| Code for shaft seal: | BQQE |
| Mechanical seal type: | Single |
| Curve tolerance: | ISO9906:2012 3B2 |
| Bearing design: | Standard |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Wear ring: | Stainless steel |
| EN 1.4517 | |
| ASTM CD4MCuN | |
| Impeller: | Stainless steel |
| EN 1.4408 | |
| ASTM CF8M | |
| Internal pump house coating: | No coating |
| Shaft: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Installation: | |
| Maximum ambient temperature: | 55 °C |
| Maximum operating pressure: | 16 bar |
| Pipe connection standard: | EN 1092-1 |
| Type of inlet connection: | DIN |
| Type of outlet connection: | DIN |
| Size of inlet connection: | DN 65 |
| Size of outlet connection: | DN 40 |
| Pressure rating for connection: | PN 16 |
| Coupling type: | Flexible w/o spacer |
| Base frame design: | EN/ISO |
| Code for base frame: | 3B ST |
| Grouting (Yes/No): | N |
| Electrical data: | |
| Motor type: | INNOMOTICS |
| Rated power - P2: | 0.55 kW |
| Mains frequency: | 50 Hz |

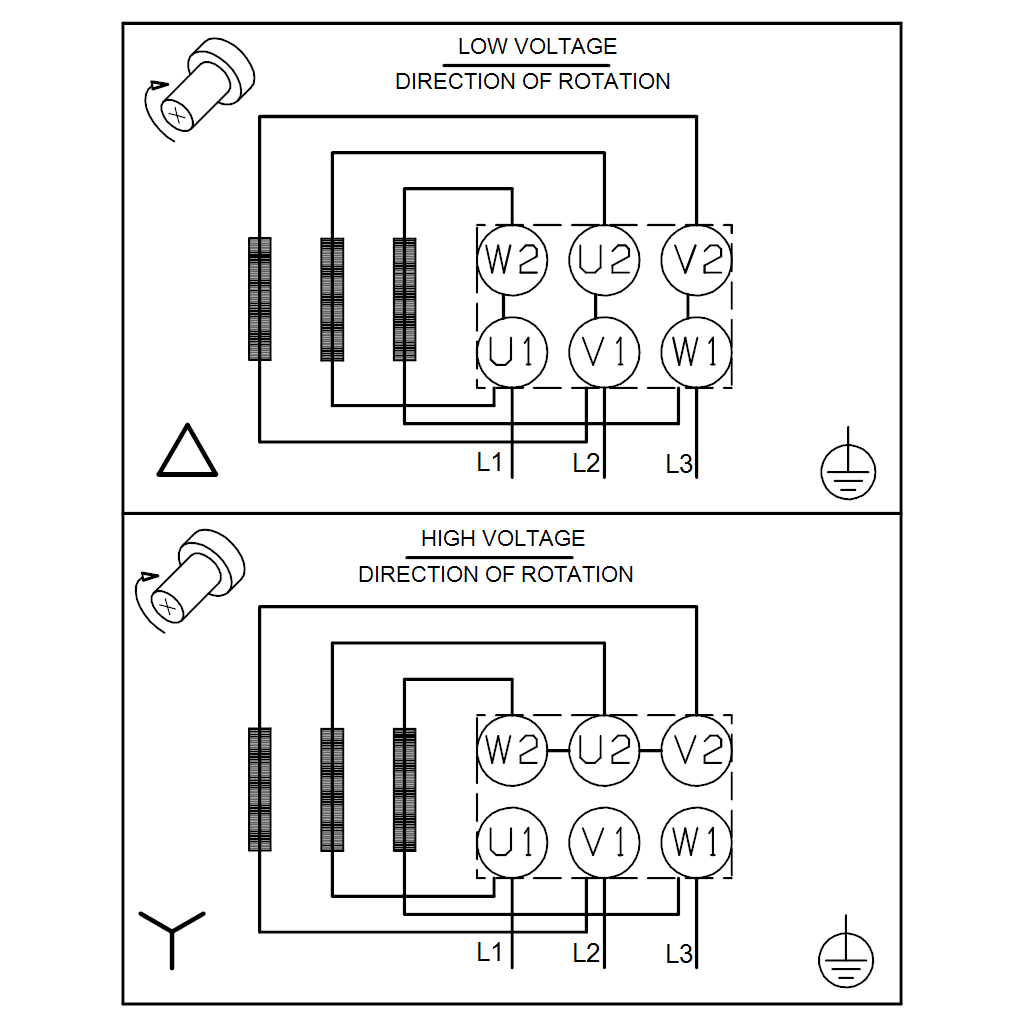

| Rated voltage: | 3 x 220-240D/380-420Y V |
| Rated current: | 2.2/1.26 A |
| Starting current: | 590 % |
| Cos phi - power factor: | 0.78 |
| Rated speed: | 1440 rpm |
| IE efficiency: | IE3 80,8% |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 80.8 % |
| Motor efficiency at 3/4 load: | 81.1 % |
| Motor efficiency at 1/2 load: | 79.3 % |
| Number of poles: | 4 |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Motor No: | 99901328 |
| Bearing insulation type N-end: | N |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 93.9 kg |
| Gross weight: | 108 kg |
| Shipping volume: | 0.249 m³ |
| Language on pump nameplate: | GB |
