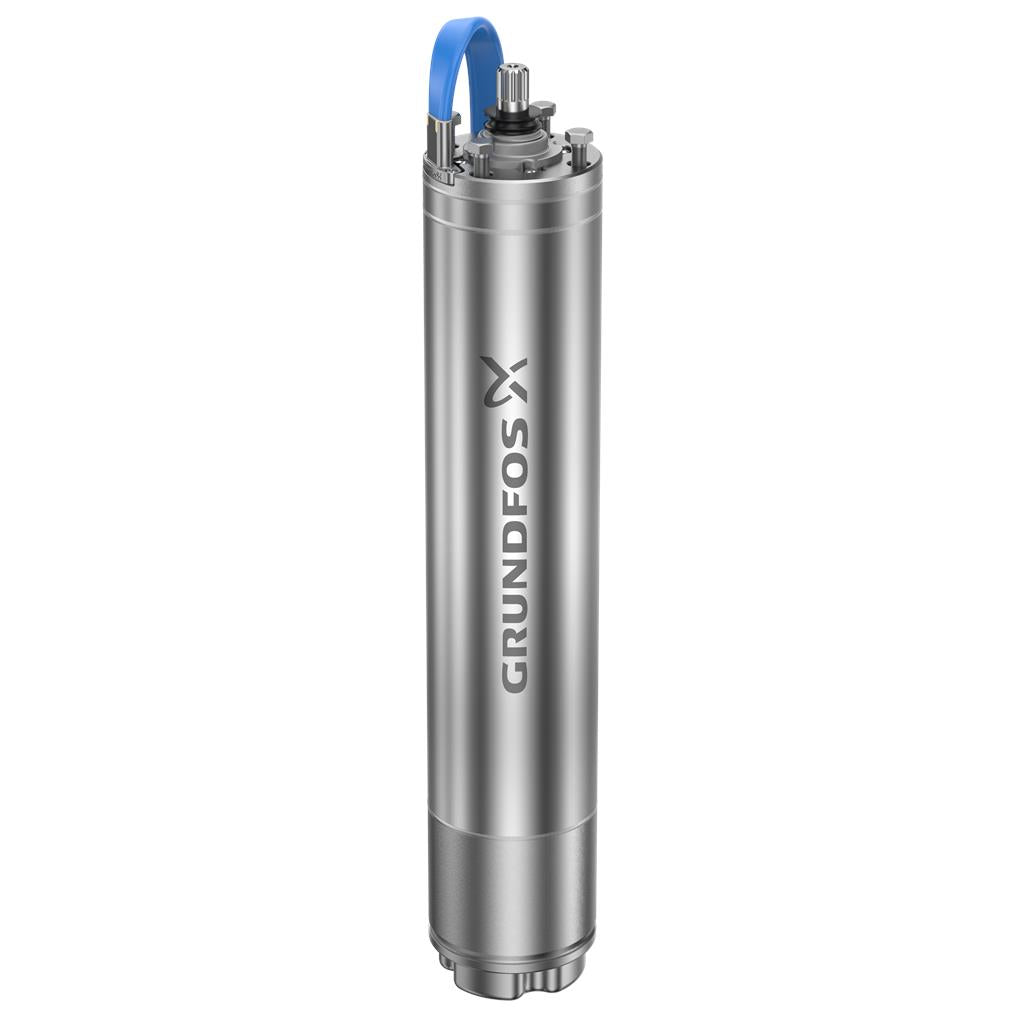

• productimage

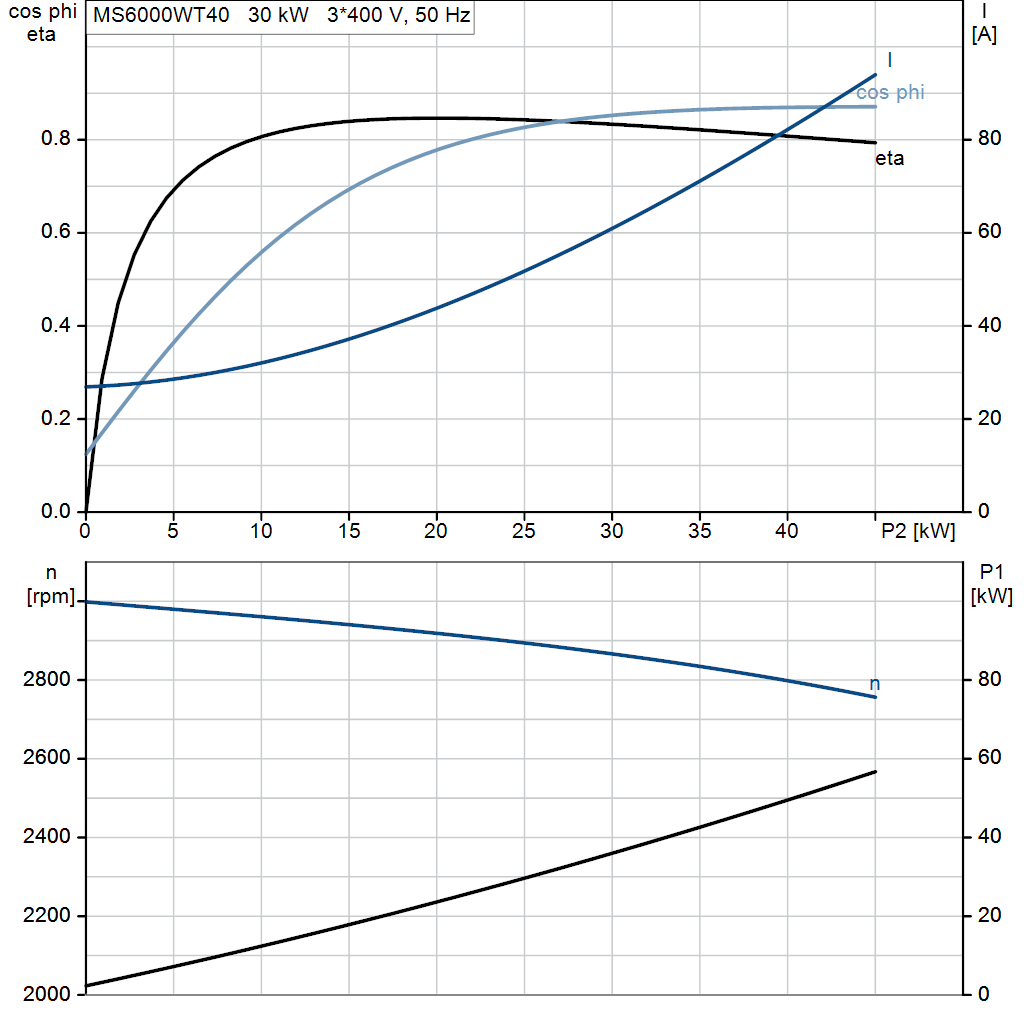

  • motorcurve

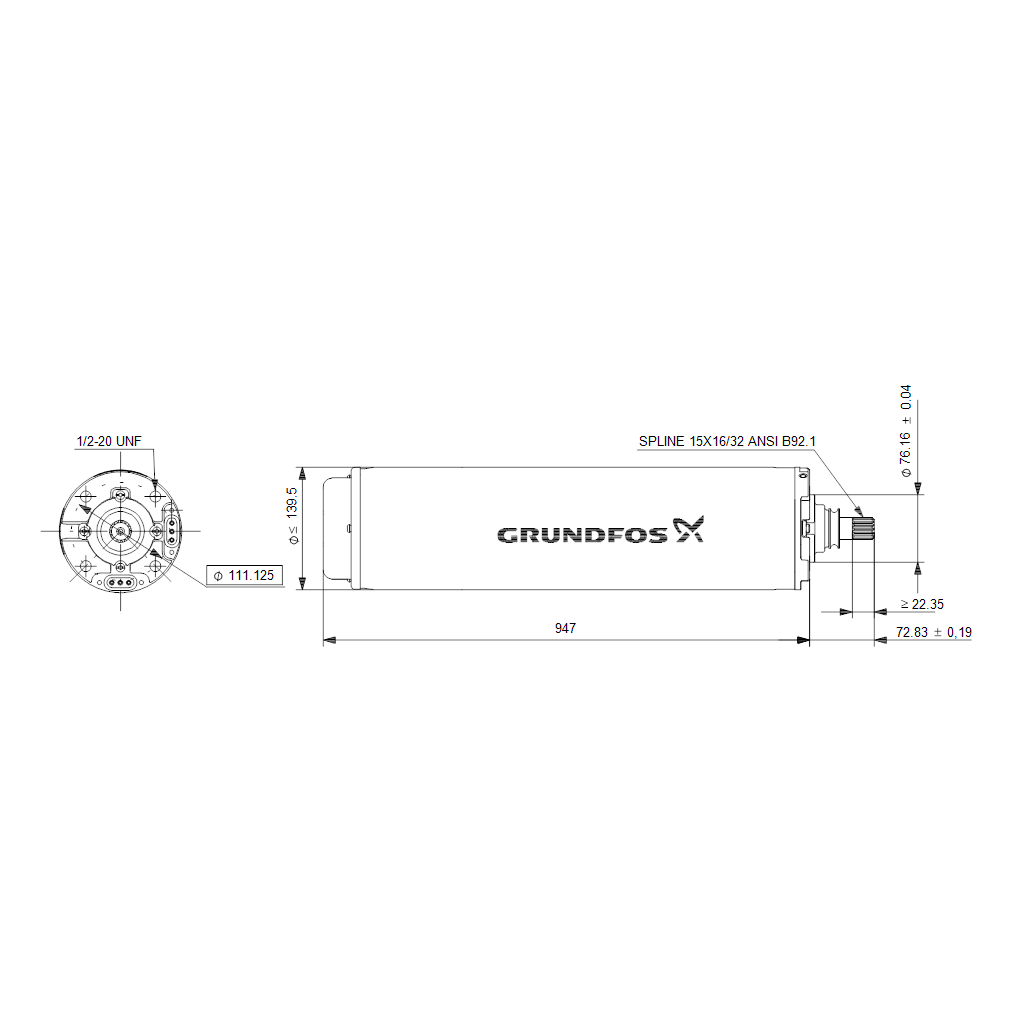

  • dimdrawingimage

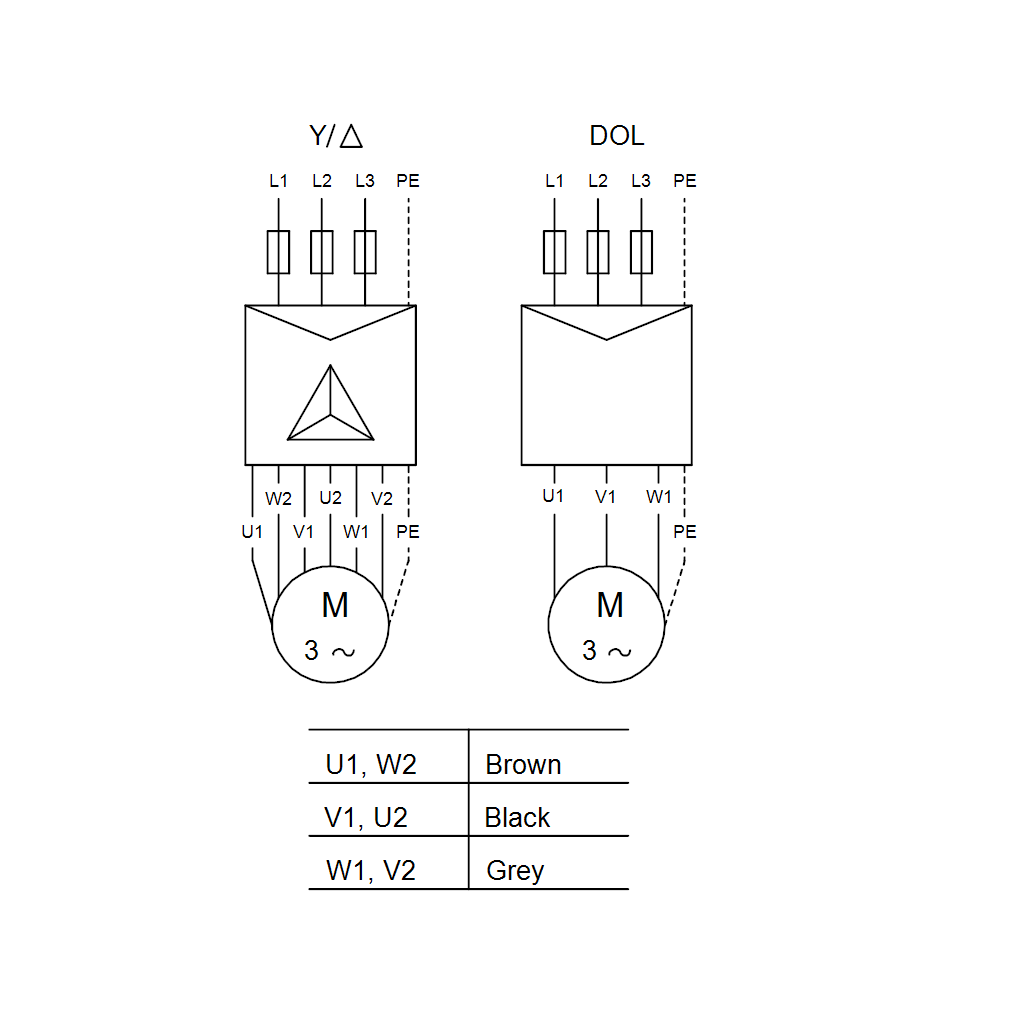

  • wiringdiagram
1 4

MS6000WT40 [98735579]

MS6000WT40 [98735579]

Grundfos
€5.845,60 EUR
€7.307,00 EUR €5.845,60 EUR
Oferta Agotado
Price excluding VAT Los gastos de envío se calculan en la pantalla de pago.
El motor es un motor 3-fásico del tipo encapsulado con protección contra arena, cojinetes lubricados por líquido y diafragma compensadora de la presión.

Specs Table

Liquid:
Max liquid t at 0.15 m/sec:40 °C
Technical:
Shaft seal for motor:CER/CARNBR
CE approved (Yes/No):Y
Motor version:T40
Materials:
Motor:Stainless steel
 DIN W.-Nr. 1.4301
 AISI 304
Installation:
Maximum ambient pressure:60 bar
Motor diameter:6 inch
Electrical data:
Motor type:MS6000
Rated power - P2:30 kW
Mains frequency:50 Hz
Rated voltage:3 x 380-400-415 V
Voltage tolerance:+6/-10 %
Rated current:66.5-64.0-63.0 A
Starting current:450-500-530 %
Cos phi - power factor:0.87-0.85-0.82
Rated speed:2850-2870-2880 rpm
Rated full-load torque:100 Nm
Locked-rotor torque:140-160-170 %
Breakdown torque:230-260-290 %
Moment of inertia:0.0125 kg m²
Axial load max:27 kN
Start. method:direct-on-line
Enclosure class (IEC 34-5):IP68
Insulation class (IEC 85):F
Built-in temp. transmitter:yes
Winding resistance:0.383 Ohm
Windings:Enamelled
Others:
Net weight:78 kg
