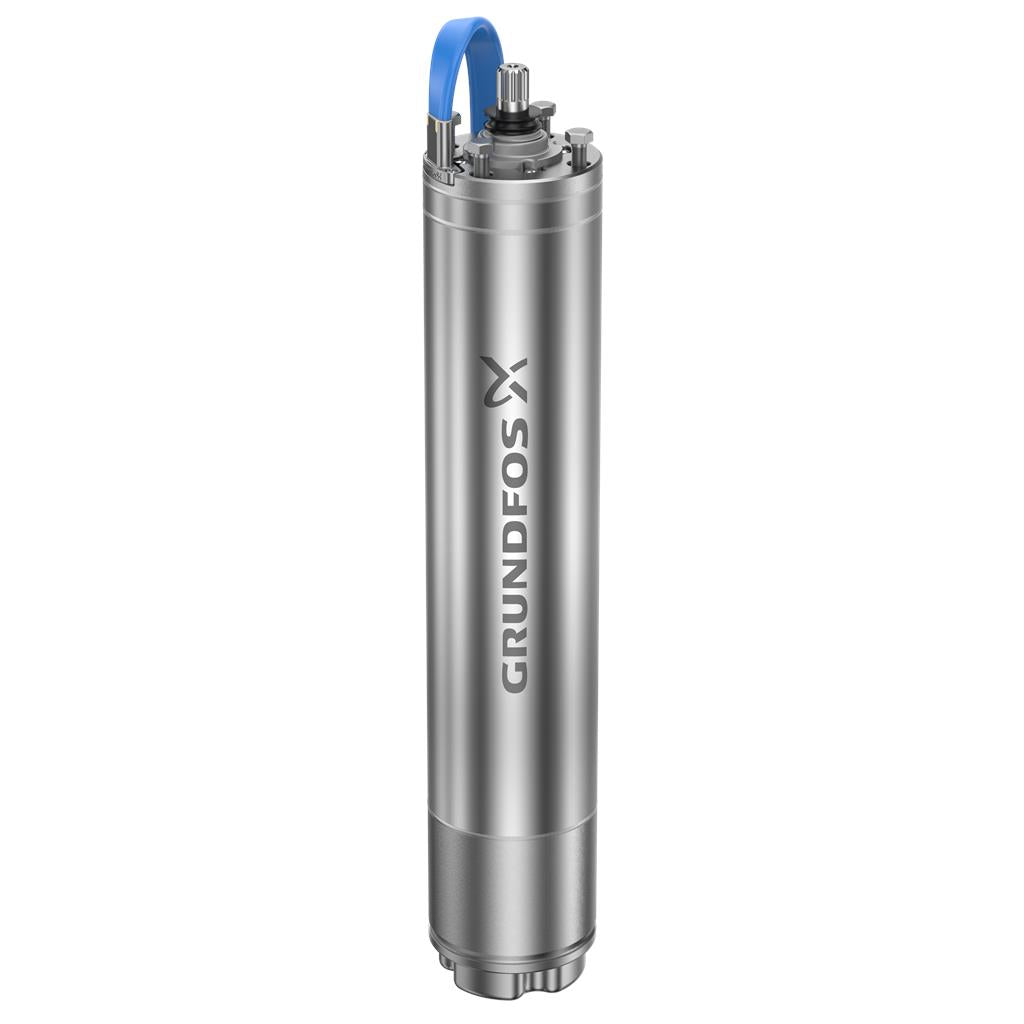

• productimage

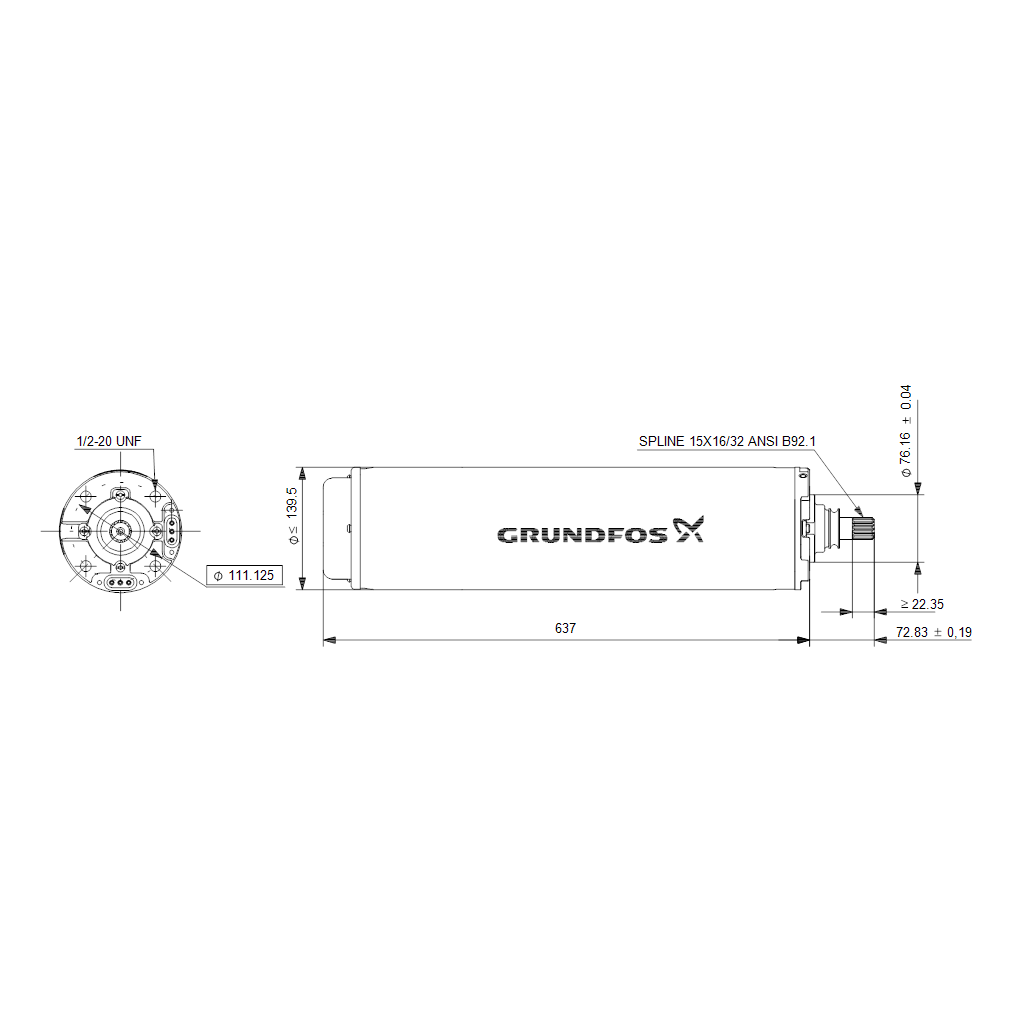

  • dimdrawingimage

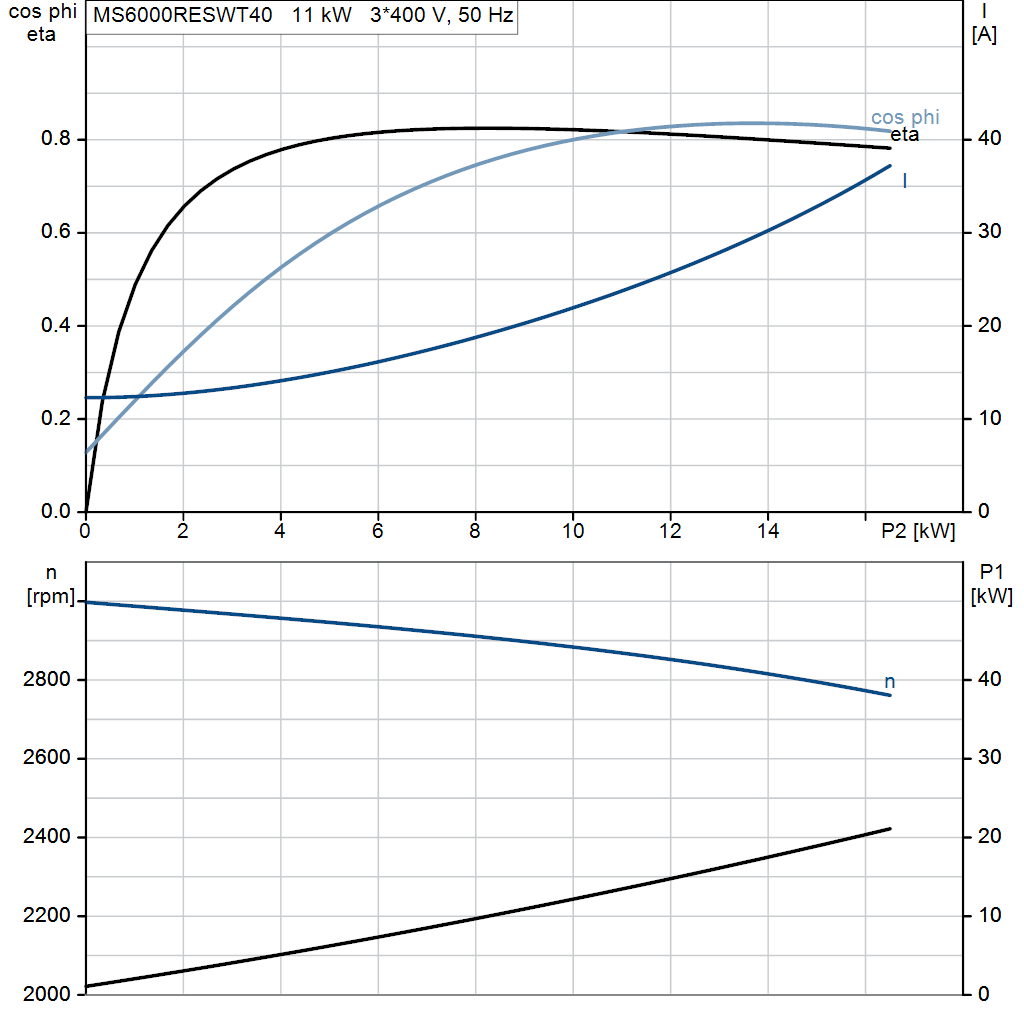

  • motorcurve

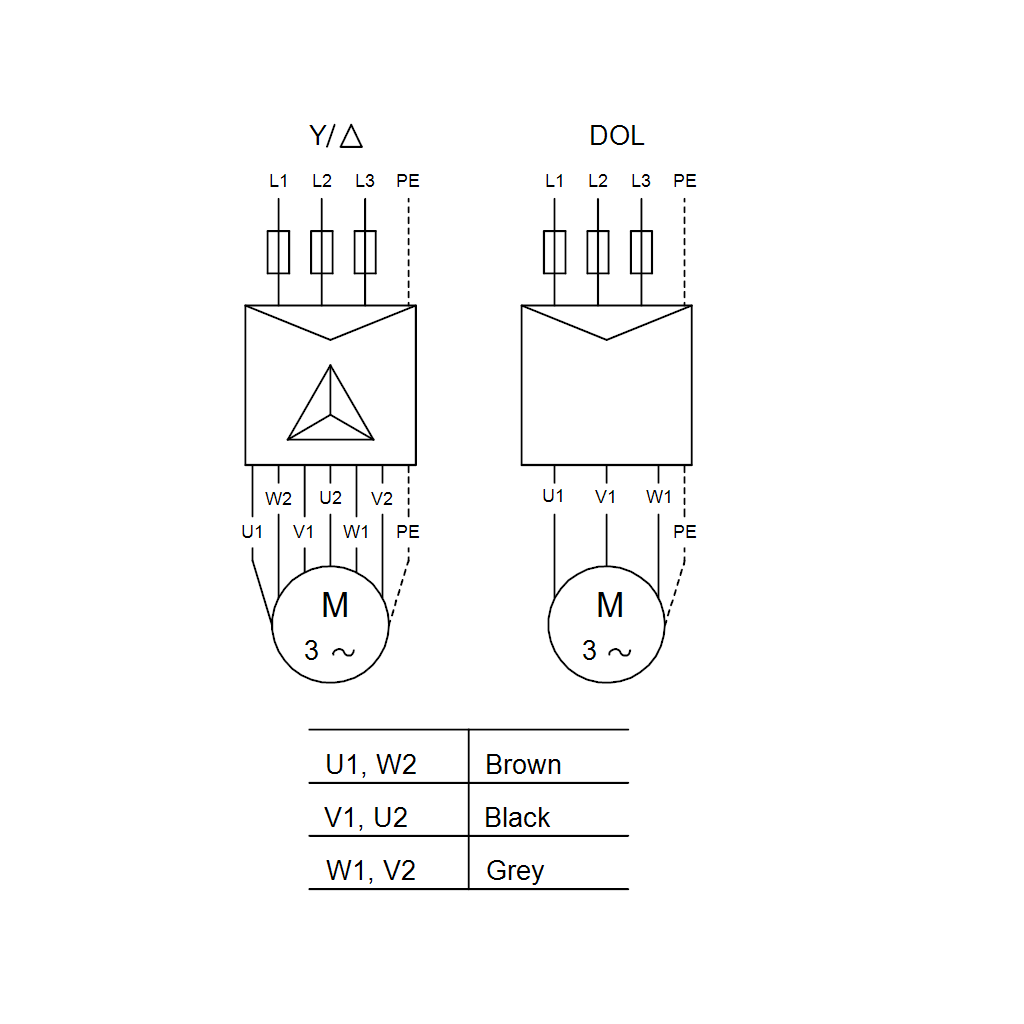

  • wiringdiagram
1 4

MS6000RESWT40 [98735500]

MS6000RESWT40 [98735500]

Grundfos
€5.312,00 EUR
€6.640,00 EUR €5.312,00 EUR
Oferta Agotado
Price excluding VAT Los gastos de envío se calculan en la pantalla de pago.
El motor es un motor 3-fásico del tipo encapsulado con protección contra arena, cojinetes lubricados por líquido y diafragma compensadora de la presión.

Specs Table

Liquid:
Max liquid t at 0.15 m/sec:40 °C
Technical:
Shaft seal for motor:SIC/SICFKM
CE approved (Yes/No):Y
Motor version:T40
Materials:
Motor:Stainless steel
 DIN W.-Nr. 1.4539
 AISI 904L
Installation:
Maximum ambient pressure:60 bar
Motor diameter:6 inch
Electrical data:
Motor type:MS6000
Rated power - P2:11 kW
Mains frequency:50 Hz
Rated voltage:3 x 380-400-415 V
Voltage tolerance:+6/-10 %
Rated current:26.0-25.0-24.8 A
Starting current:470-520-540 %
Cos phi - power factor:0.84-0.82-0.79
Rated speed:2850-2870-2880 rpm
Rated full-load torque:37 Nm
Locked-rotor torque:150-170-180 %
Breakdown torque:240-270-300 %
Moment of inertia:0.0057 kg m²
Axial load max:27 kN
Start. method:direct-on-line
Enclosure class (IEC 34-5):IP68
Insulation class (IEC 85):F
Built-in temp. transmitter:yes
Winding resistance:1.173 Ohm
Windings:Enamelled
Others:
Net weight:46 kg
Country of origin:HU
Custom tariff no.:85015230
Ver todos los detalles
