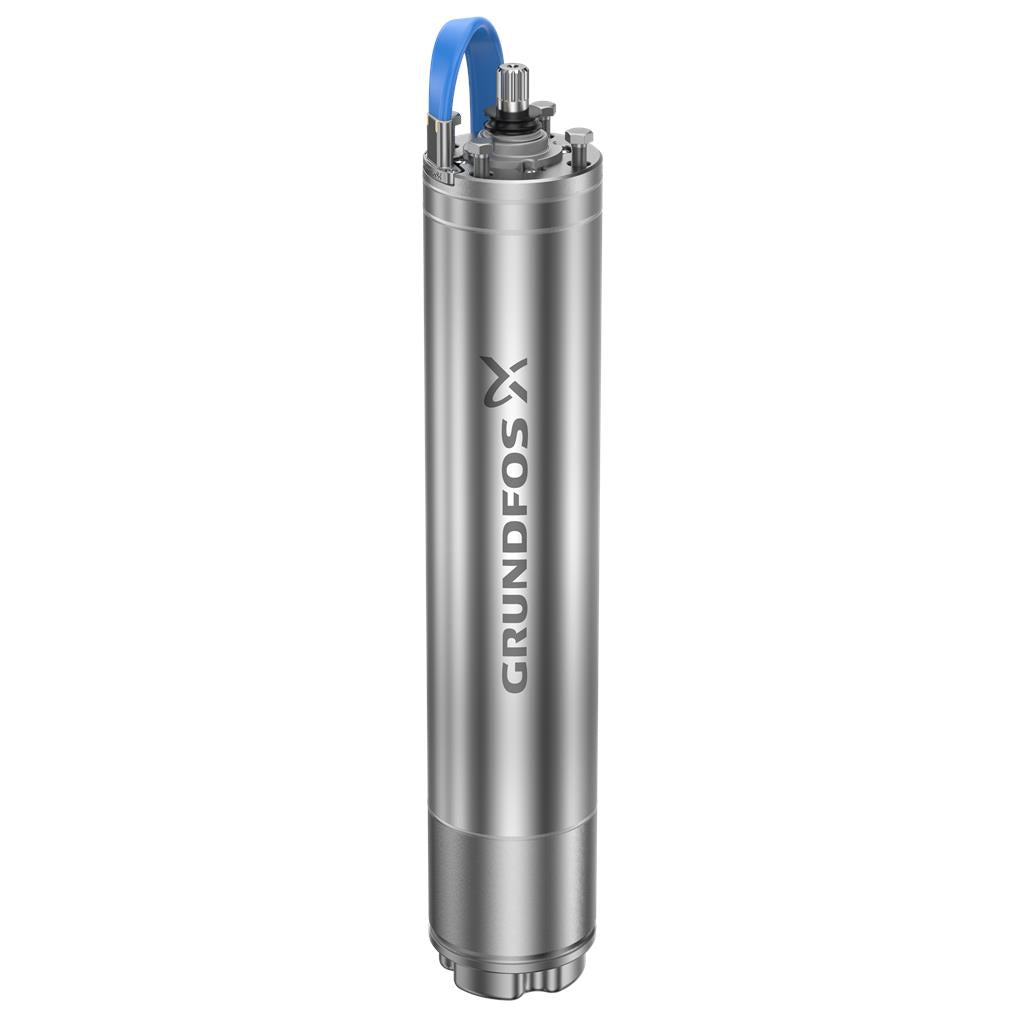

• productimage

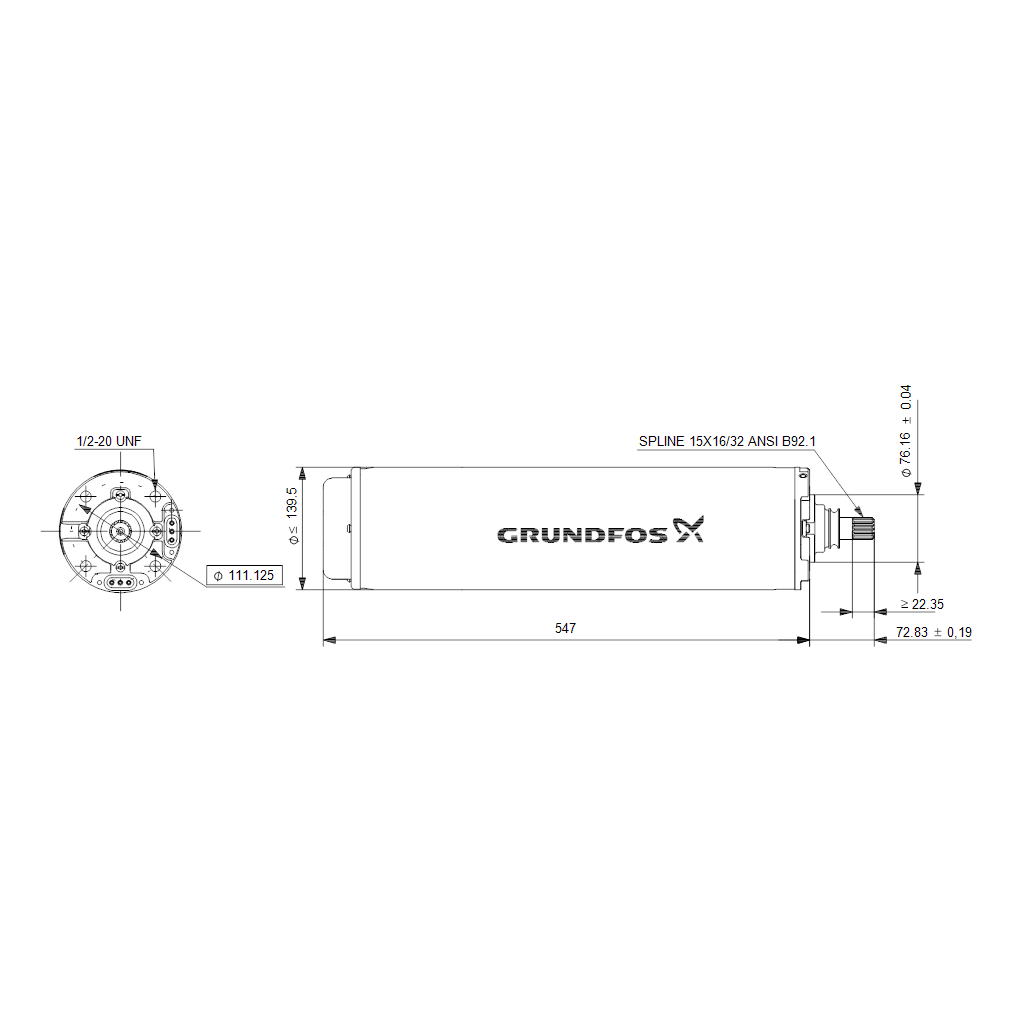

  • dimdrawingimage

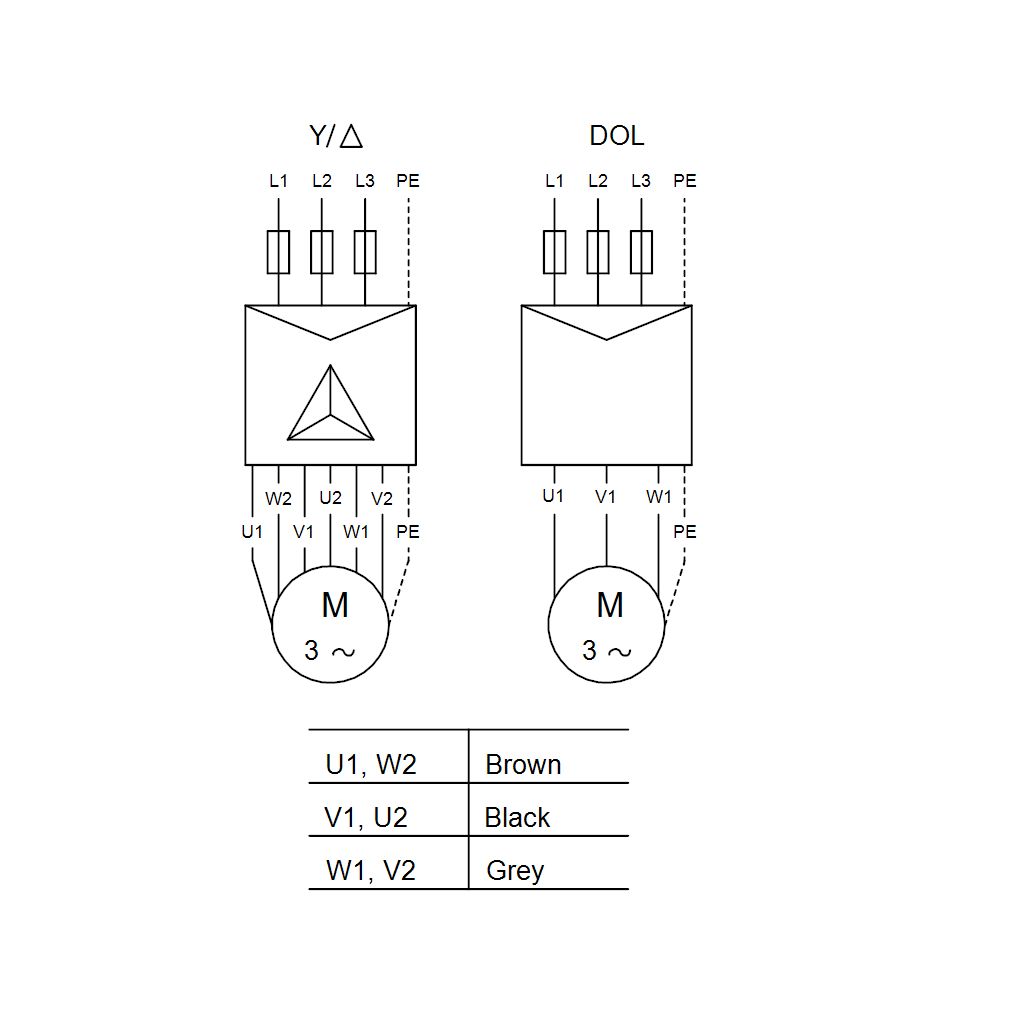

  • wiringdiagram

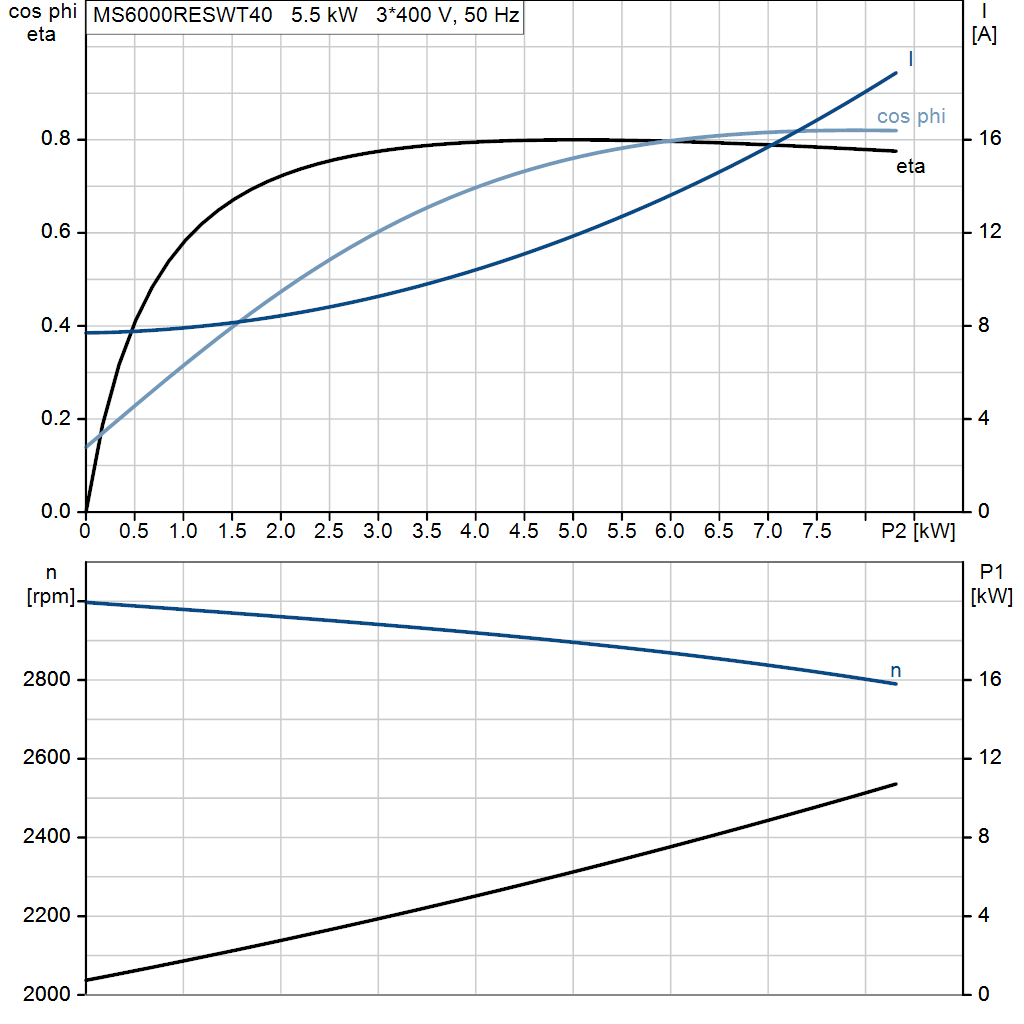

  • motorcurve
1 4

MS6000RESWT40 [98710880]

MS6000RESWT40 [98710880]

Grundfos
€4.509,60 EUR
€5.637,00 EUR €4.509,60 EUR
Oferta Agotado
Price excluding VAT Los gastos de envío se calculan en la pantalla de pago.
El motor es un motor 3-fásico del tipo encapsulado con protección contra arena, cojinetes lubricados por líquido y diafragma compensadora de la presión.

Specs Table

Liquid:
Max liquid t at 0.15 m/sec:40 °C
Technical:
Shaft seal for motor:SIC/SICFKM
CE approved (Yes/No):Y
Motor version:T40
Materials:
Motor:Stainless steel
 DIN W.-Nr. 1.4539
 AISI 904L
Installation:
Maximum ambient pressure:60 bar
Motor diameter:6 inch
Electrical data:
Motor type:MS6000
Rated power - P2:5.5 kW
Mains frequency:50 Hz
Rated voltage:3 x 380-400-415 V
Voltage tolerance:+6/-10 %
Rated current:13.6-13.4-13.6 A
Starting current:470-510-520 %
Cos phi - power factor:0.82-0.78-0.75
Rated speed:2870-2880-2890 rpm
Rated full-load torque:18.4 Nm
Locked-rotor torque:140-160-180 %
Breakdown torque:240-270-300 %
Moment of inertia:0.0037 kg m²
Axial load max:7.5 kN
Start. method:direct-on-line
Enclosure class (IEC 34-5):IP68
Insulation class (IEC 85):F
Built-in temp. transmitter:yes
Winding resistance:2.467 Ohm
Windings:Enamelled
Others:
Net weight:34 kg
Country of origin:HU
Custom tariff no.:85015220
