MS4000 [92959989]
MS4000 [92959989]
Grundfos
Precio habitual
€964,00 EUR
Precio habitual
€1.205,00 EUR
Precio de oferta
€964,00 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

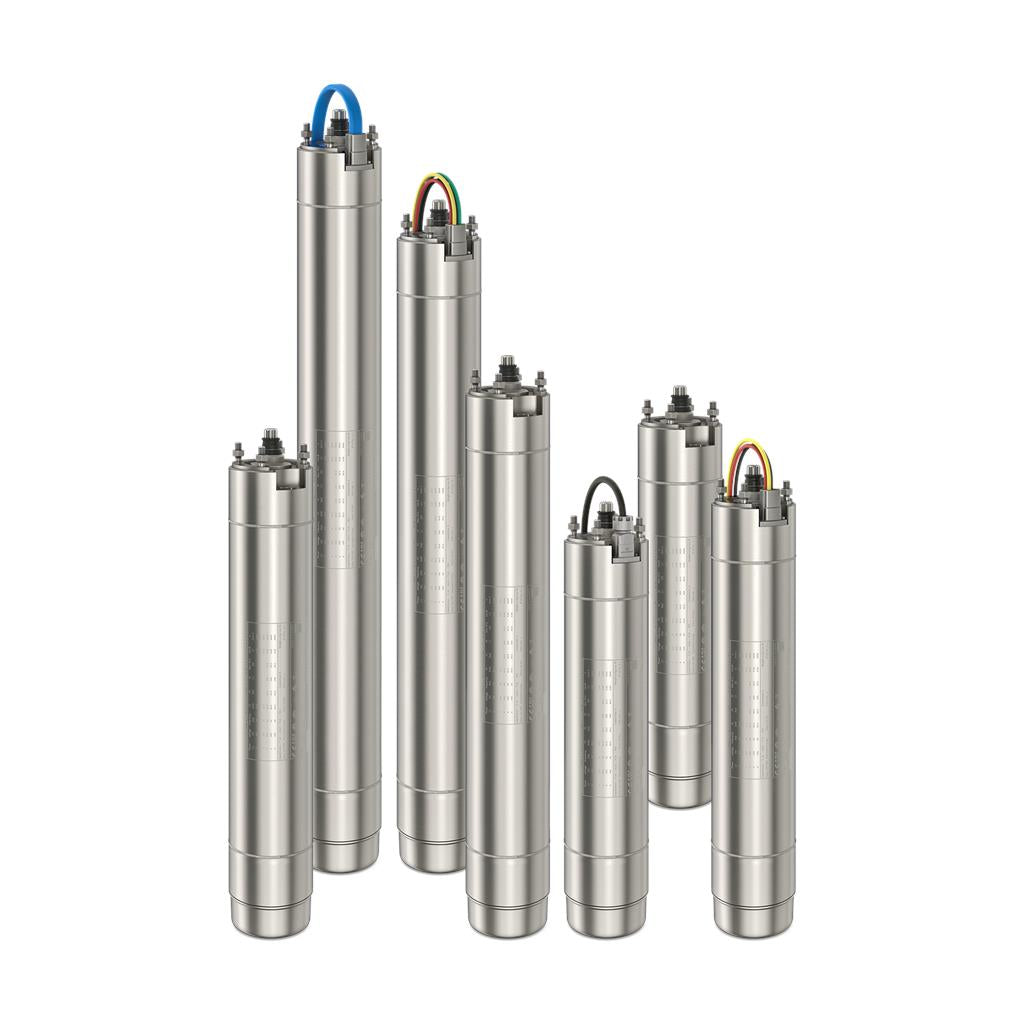

El motor es un motor 1-fásico del tipo encapsulado con protección contra arena, cojinetes lubricados por líquido y diafragma compensadora de la presión.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS,C_UL_US_NSF372 |
| Model: | C |
| Motor version: | T40 |

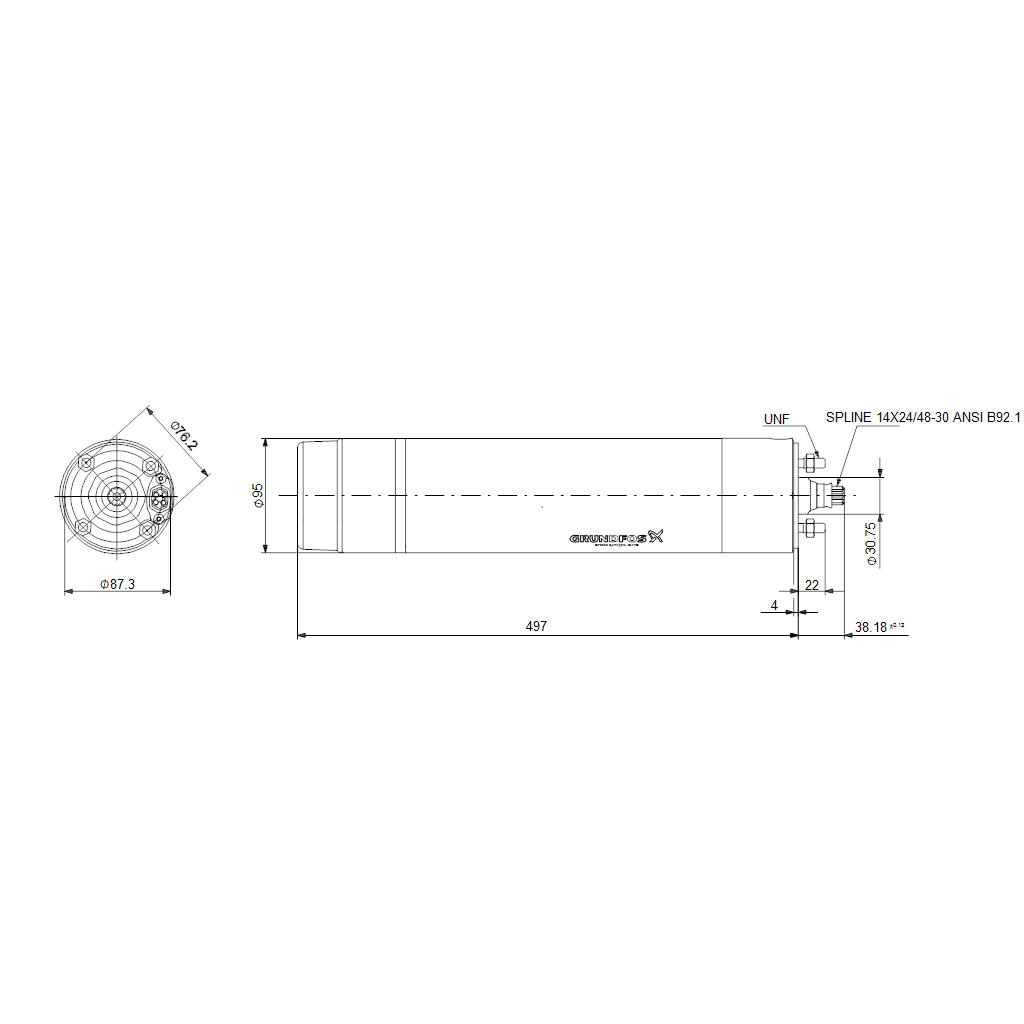

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |

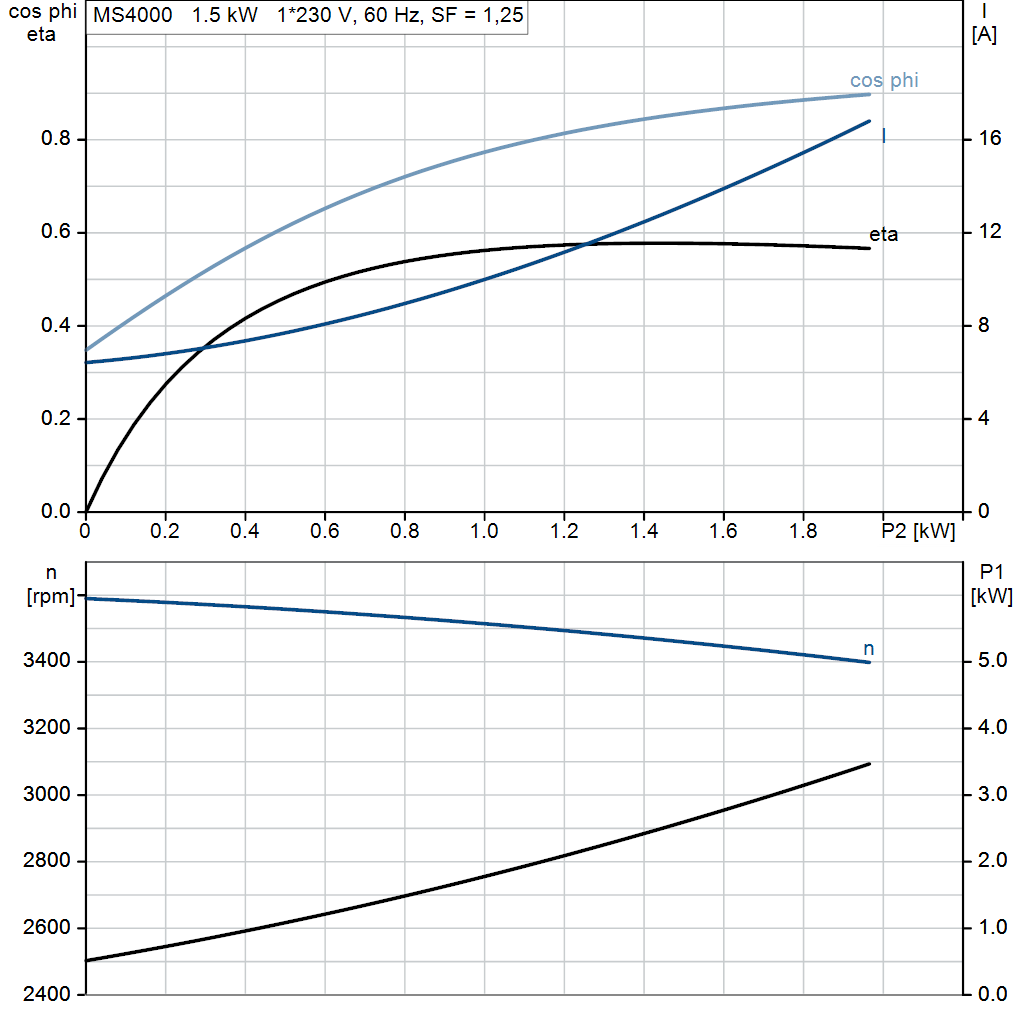

| Rated power - P2: | 1.5 kW |
| KVA code: | G |
| Mains frequency: | 60 Hz |
| Rated voltage: | 1 x 230 V |
| Voltage tolerance: | +10/-10 % |
| Service factor: | 1.25 |
| Rated current: | 10.6 A |
| Maximum current consumption - service factor: | 13.2 A |
| Starting current: | 380 % |
| Cos phi - power factor: | 0.9 |
| Rated speed: | 3500 rpm |
| Speed - service factor: | 3470 rpm |
| Rated full-load torque: | 4 Nm |
| Locked-rotor torque: | 80 % |
| Breakdown torque: | 10.1 Nm |
| Moment of Inertia: | 0.0017 kg m² |
| Maximum axial load: | 450 kg |
| Capacitor size - run: | 20 µF/400 V |
| Capacitor size - start: | 120 µF |

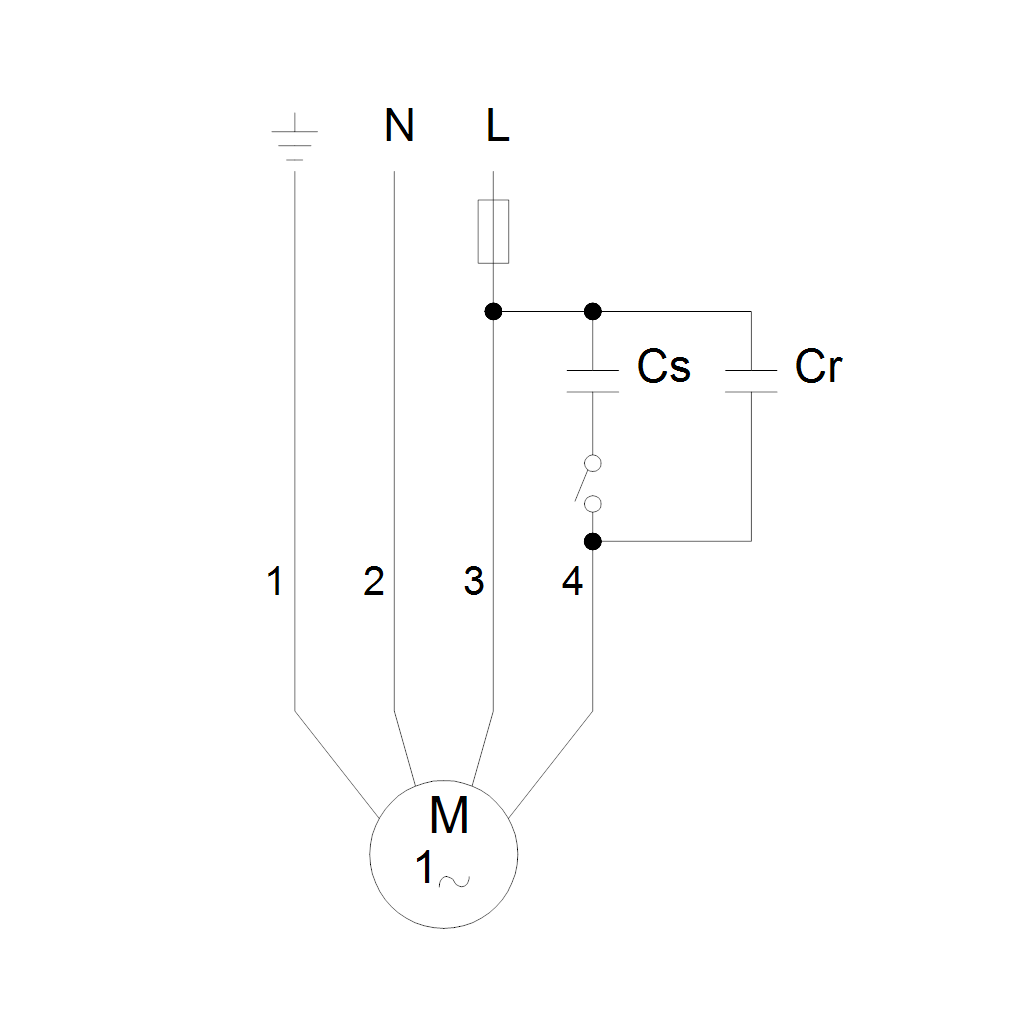

| Method of start: | Direct-on-line CSCR |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| R s1: | 3.750 Ohm |
| Resistance in operating winding: | 1.660 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 18.4 kg |
| Gross weight: | 19.4 kg |
| Shipping volume: | 0.174 m³ |
