MS4000 [92959959]
MS4000 [92959959]
Grundfos
Precio habitual
€1.267,20 EUR
Precio habitual
€1.584,00 EUR
Precio de oferta
€1.267,20 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

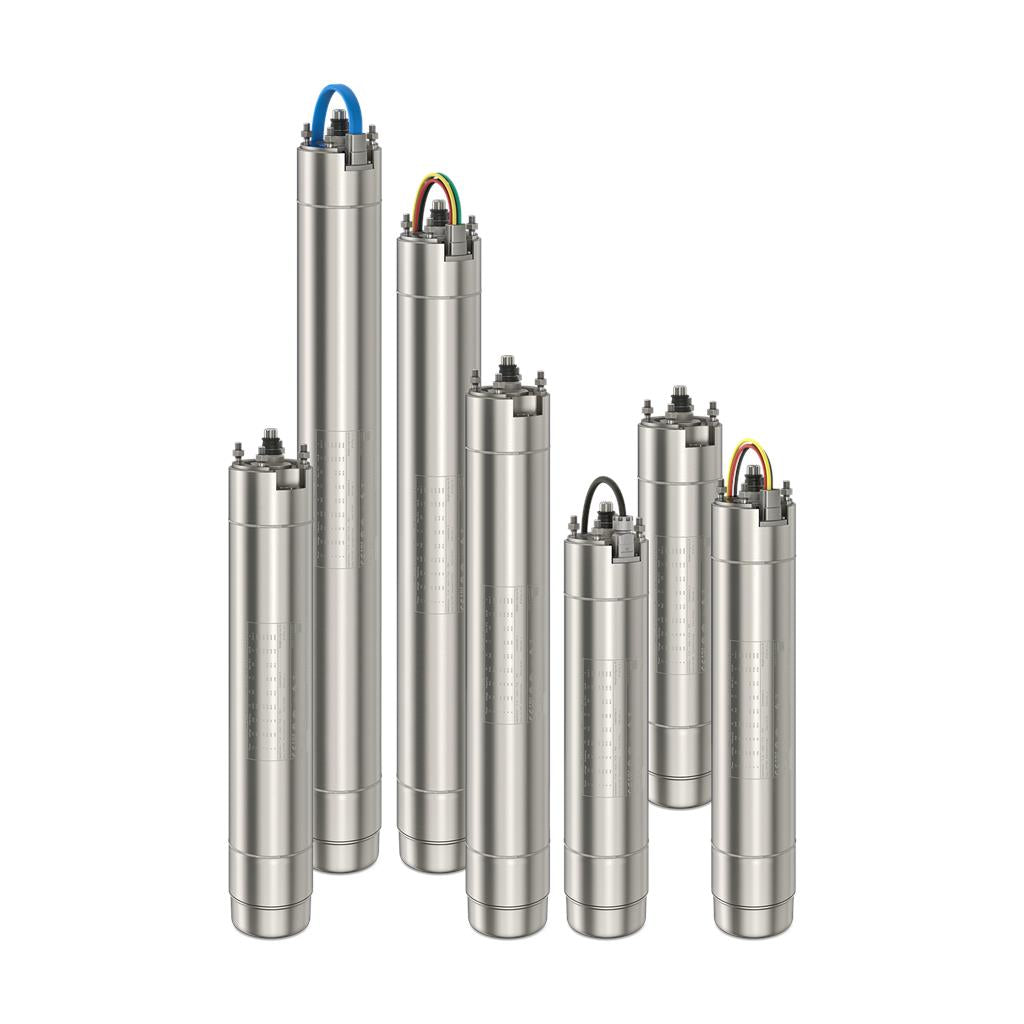

El motor es un motor 3-fásico del tipo encapsulado con protección contra arena, cojinetes lubricados por líquido y diafragma compensadora de la presión.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CCSAUS,C_UL_US_NSF372 |
| Model: | C |
| Motor version: | T40 |

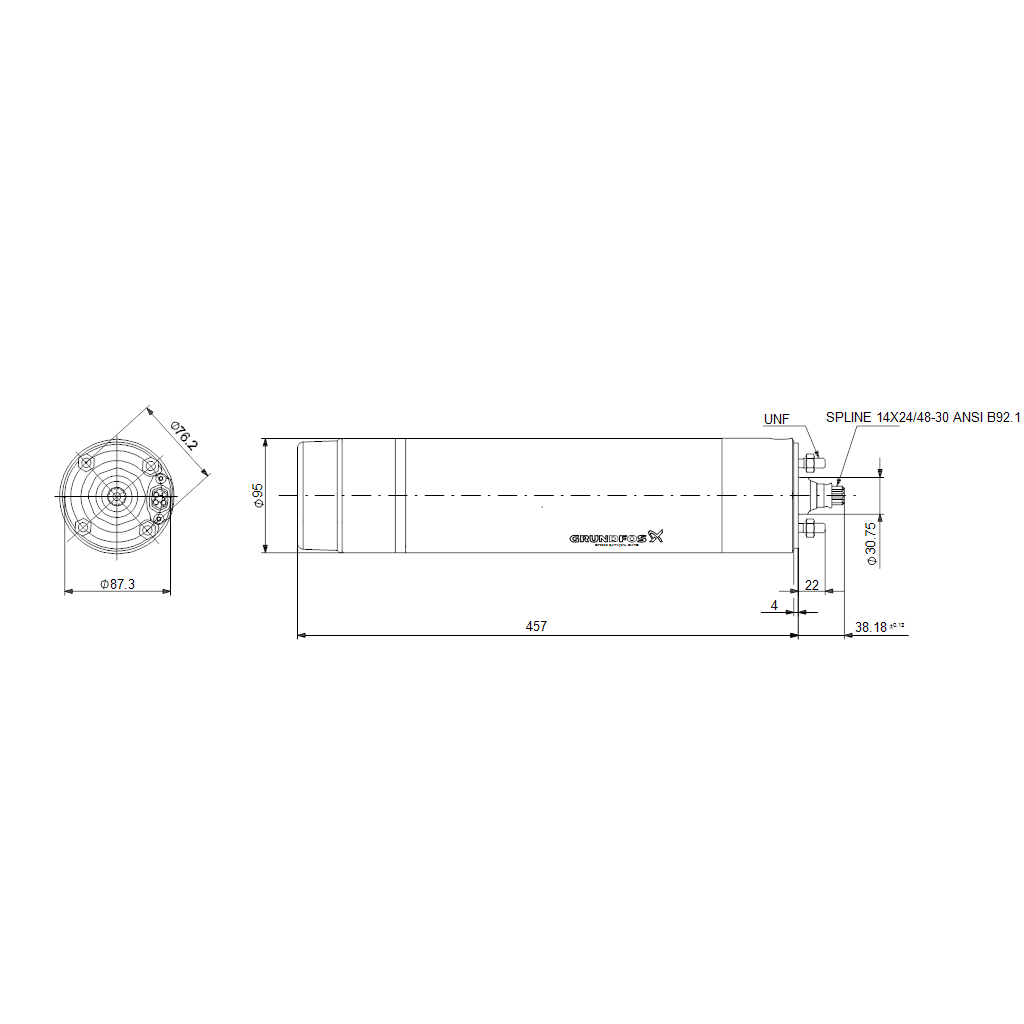

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | UNF |
| Motor diameter: | 4 inch |
| Electrical data: | |
| Motor type: | MS4000 |
| Rated power - P2: | 2.2 kW |
| KVA code: | J |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 440-460 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.15 |
| Rated current: | 5.3-5.5 A |
| Maximum current consumption - service factor: | 5.7-5.8 A |
| Starting current: | 490-510 % |
| Cos phi - power factor: | 0.76-0.74 |
| Rated speed: | 3470-3480 rpm |
| Speed - service factor: | 3440-3460 rpm |
| Rated full-load torque: | 6 Nm |
| Locked-rotor torque: | 170-190 % |
| Breakdown torque: | 16.3-18.1 Nm |
| Moment of Inertia: | 0.0014 kg m² |
| Maximum axial load: | 450 kg |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| Winding resistance: | 8.200 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 16 kg |
| Gross weight: | 16 kg |
| Shipping volume: | 0.025 m³ |
