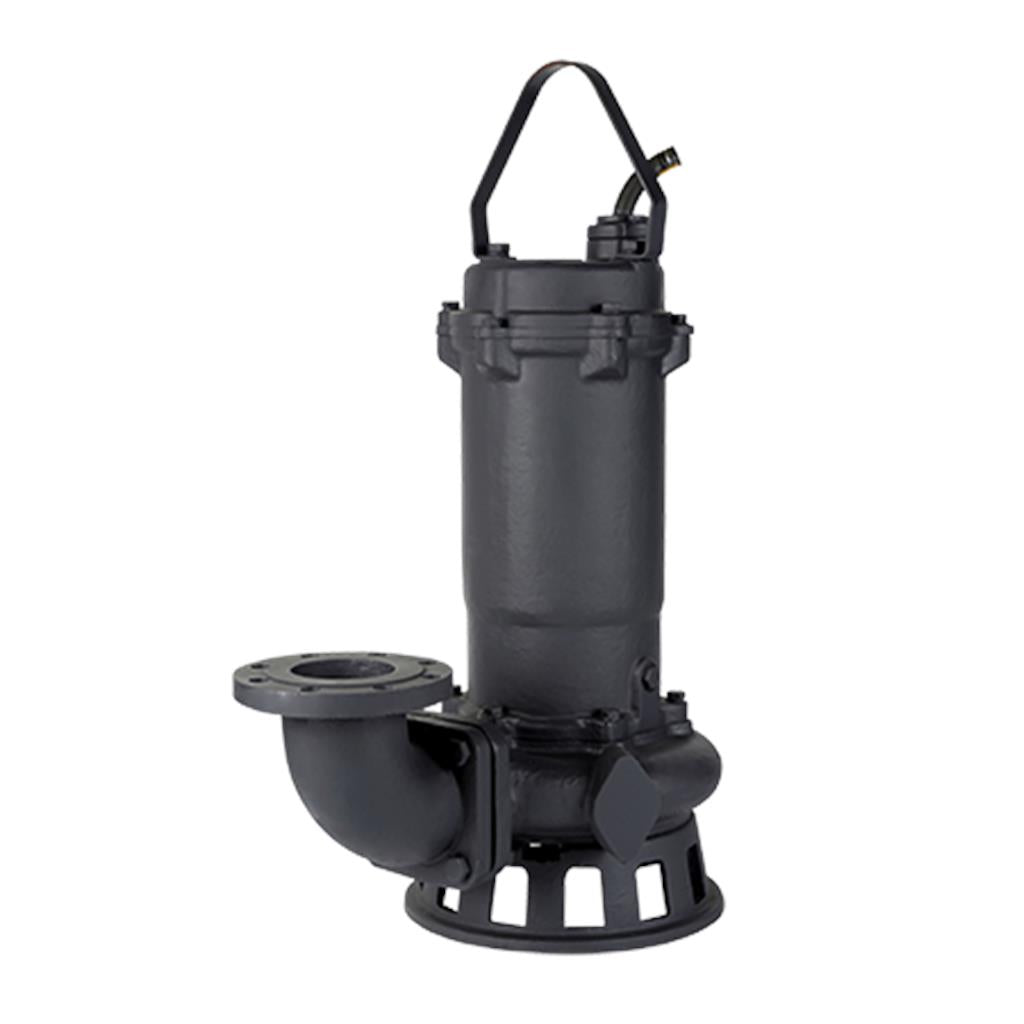

Bombas de drenaje sumergibles
La gama DPK de Grundfos se compone de bombas sumergibles para aplicaciones de drenaje.
Estas bombas incorporan un impulsor semiabierto con un paso libre de 10 mm y son aptas para bombear:
|
El diseño compacto de estas bombas hace que resulten aptas para su uso en instalaciones tanto provisionales como fijas.
Las bombas están fabricadas en hierro fundido e incorporan un puerto de descarga y un motor trifásico sumergible con una carcasa hermética con aislamiento de clase F (155 °C).
Asimismo, también incluyen un puerto de descarga lateral y un cierre mecánico doble.
Pueden instalarse tanto de forma independiente como en sistemas con acoplamiento automático.
Estas bombas cuentan con un sensor de temperatura bimetálico que protege el motor frente al sobrecalentamiento.
Además, tienen un cable de 10 m.
Specs Table
| Controls: | |
| Water-in-oil sensor: | without water-in-oil sensor |
| Seal sensor: | N |
| Liquid: | |
| Liquid temperature range: | 0 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

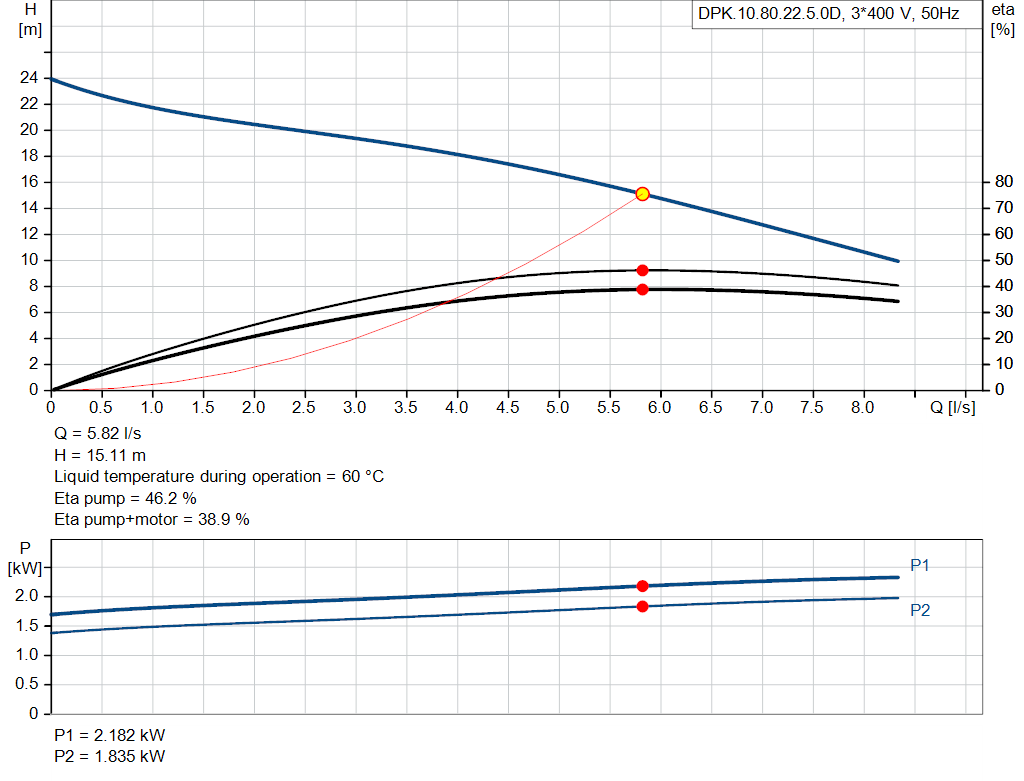

| Rated flow: | 5.82 l/s |
| Maximum flow: | 8.33 l/s |
| Rated head: | 15.11 m |
| Actual impeller diameter: | 140 mm |
| Code for impeller design: | O |
| Type of impeller: | Open impeller |
| Max. Particle: | 10 mm |
| Max. hydraulic efficiency: | 46 % |
| Curve tolerance: | NONE |
| Materials: | |
| Pump housing: | Cast iron |
| EN 1561 EN-GJL-200 | |
| Impeller: | Ductile cast iron |
| EN 1563 EN-GJS-450-10 | |
| Motor house: | Cast iron |
| EN 1561 EN-GJL-250 | |
| ASTM A48 35B | |
| Shaft seal: | SIC |
| Secondary shaft seal: | CERAMIC-CARBON |
| Installation: | |
| Range of ambient temperature: | 0 .. 40 °C |
| Maximum operating pressure: | 5.7 bar |
| Type of outlet connection: | Square |
| Size of outlet connection: | DN 80 |
| Pressure rating for outlet connection: | PN 10 |
| Maximum installation depth: | 25 m |
| Electrical data: | |
| Power input P1: | 2.555 kW |
| Rated power - P2: | 2.2 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415 V |
| Voltage tolerance: | +5/-5 % |
| Max starts per hour: | 30 |
| Rated current: | 4.4 A |
| Rated current at 3/4 load: | 3.7 A |
| Rated current at 1/2 load: | 3 A |
| Maximum current consumption: | 5.1 A |
| Cos phi - power factor: | 0.89 |
| Cos phi - p.f. at 3/4 load: | 0.82 |
| Cos phi - p.f. at 1/2 load: | 0.71 |
| Rated speed: | 2850 rpm |
| Efficiency at full load: | 86.1 % |
| Efficiency at 3/4 load: | 83.1 % |
| Efficiency at 1/2 load: | 79.8 % |
| Number of poles: | 2 |
| Method of start: | DOL |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Explosion proof: | no |
| Built-in motor protection: | PTO |
| Power cable type: | PNCT |
| Length of power cable: | 10 m |
| Others: | |
| Net weight: | 42.6 kg |
| Gross weight: | 52 kg |
| Shipping volume: | 116 m³ |
| Country of origin: | CN |
| Custom tariff no.: | 84137021 |
