CRN 10-10 A-P-A-V-HQQV [96503571]
CRN 10-10 A-P-A-V-HQQV [96503571]
Grundfos
Precio habitual
€6.041,60 EUR
Precio habitual
€7.552,00 EUR
Precio de oferta
€6.041,60 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

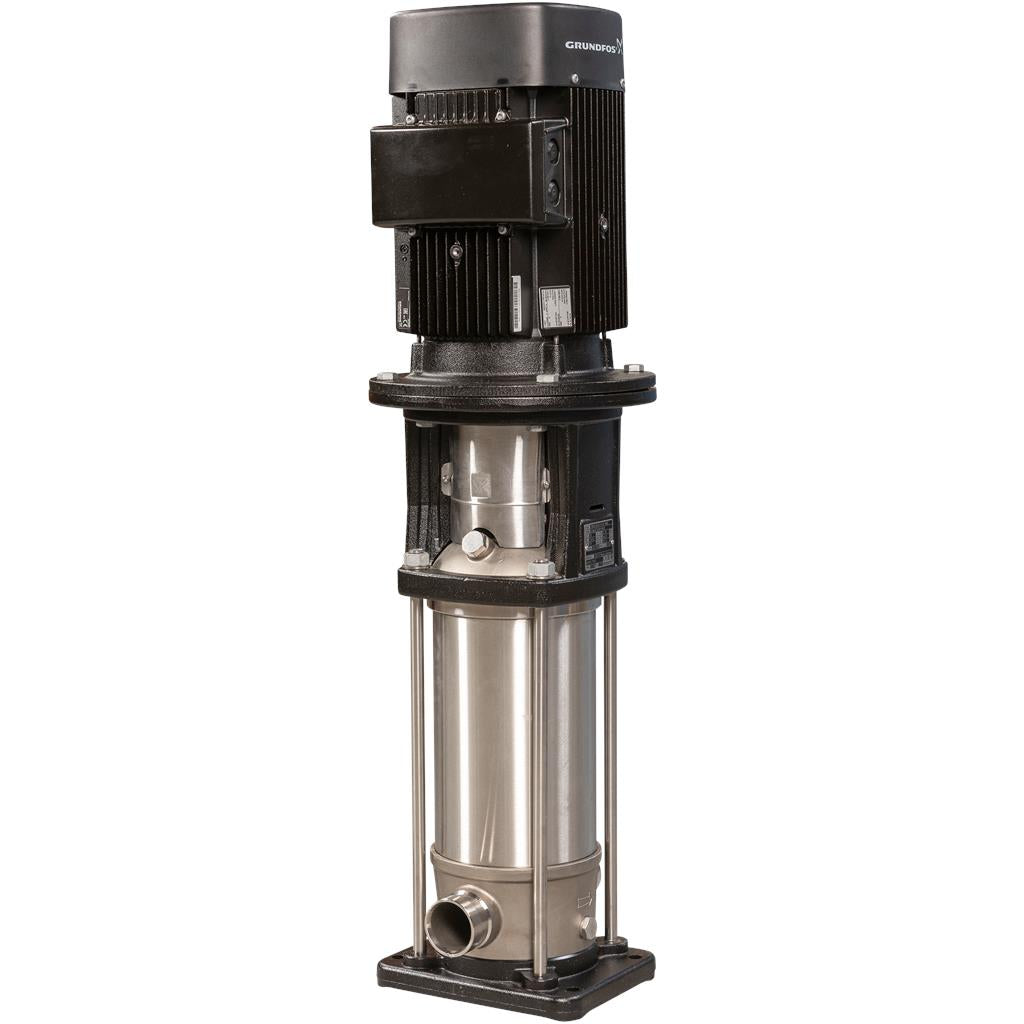

Bomba centrífuga multietapa para instalación vertical con puertos de aspiración y de descarga al mismo nivel (en línea). Las piezas de la bomba destinadas al contacto con el líquido son de acero inoxidable de alta calidad. Un cierre mecánico de cartucho garantiza la máxima fiabilidad, permite llevar a cabo la manipulación de forma segura y facilita el acceso y el mantenimiento. La transmisión de potencia tiene lugar por medio de un acoplamiento dividido. La conexión de las tuberías se lleva a cabo por medio de acoplamientos PJE (Victaulic®). La bomba está equipada con un motor asíncrono de 3 fases, refrigerado por ventilador y montado sobre soportes.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |

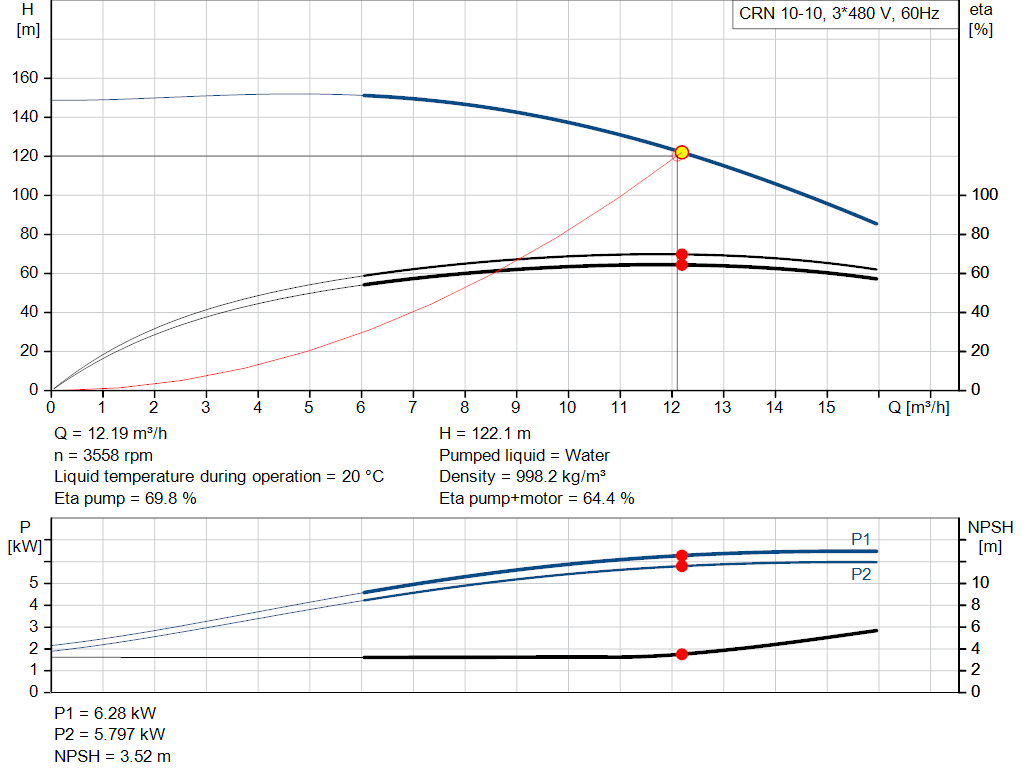

| Technical: | |
| Pump speed on which pump data are based: | 3525 rpm |
| Rated flow: | 12.1 m³/h |
| Rated head: | 120.2 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQV |
| Code for shaft seal: | HQQV |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type of connection: | PJE |
| Size of inlet connection: | DN 50 |
| 2 inch | |
| Size of outlet connection: | DN 50 |
| 2 inch | |
| Pressure rating for connection: | PN 50 |
| Flange size for motor: | FF265 |

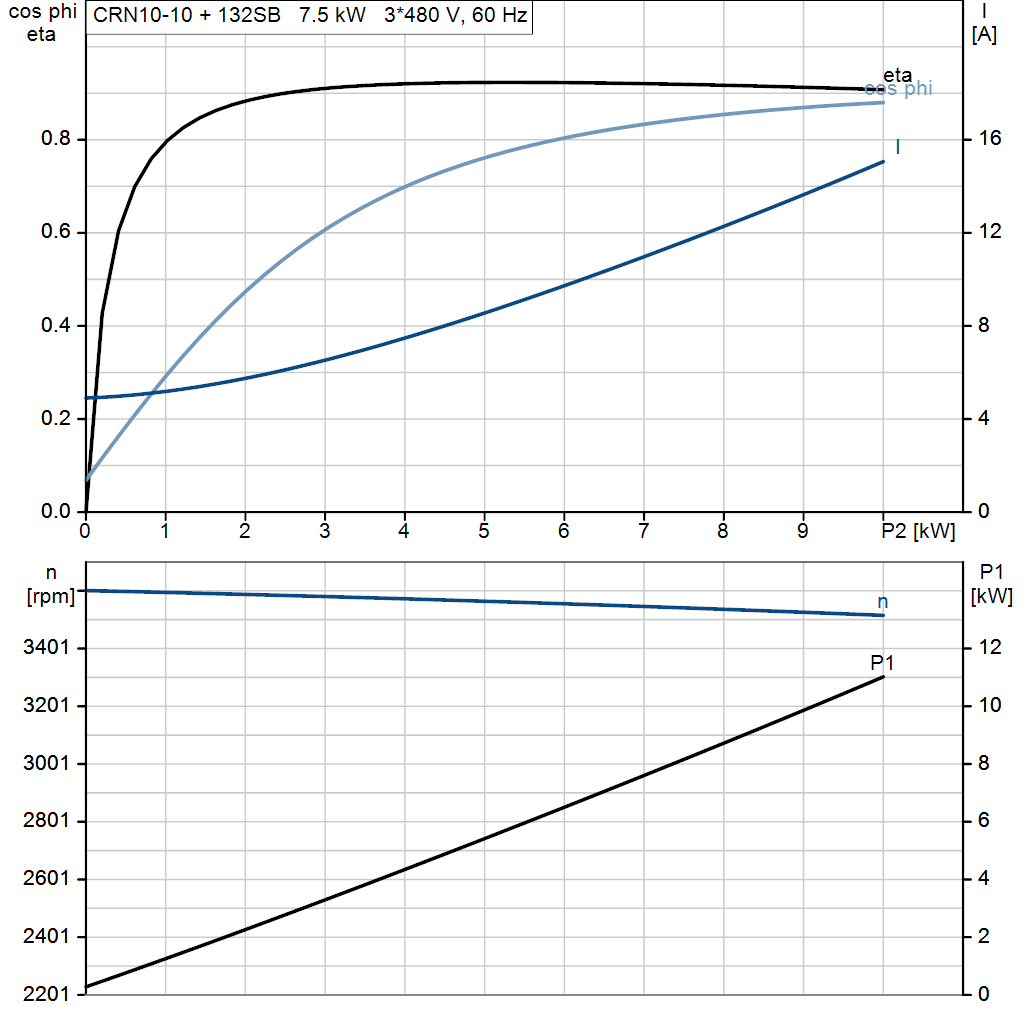

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 132SB |
| Rated power - P2: | 7.5 kW |
| Power (P2) required by pump: | 7.5 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 400-480D/690Y V |
| Rated current: | 13,8-12,0/8,10 A |
| Starting current: | 750-1050 % |
| Cos phi - power factor: | 0.88-0.82 |
| Rated speed: | 3500-3530 rpm |
| IE Efficiency class: | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load: | 90.2 % |
| Motor efficiency at 3/4 load: | 90.9-90.7 % |
| Motor efficiency at 1/2 load: | 91.1-89.7 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85U17522 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 95 kg |
| Gross weight: | 117 kg |
| Shipping volume: | 0.285 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
