CRI 1S-19 A-P-A-E-HQQE [92899903]
CRI 1S-19 A-P-A-E-HQQE [92899903]
Grundfos
Precio habitual
€1.936,00 EUR
Precio habitual
€2.420,00 EUR
Precio de oferta
€1.936,00 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

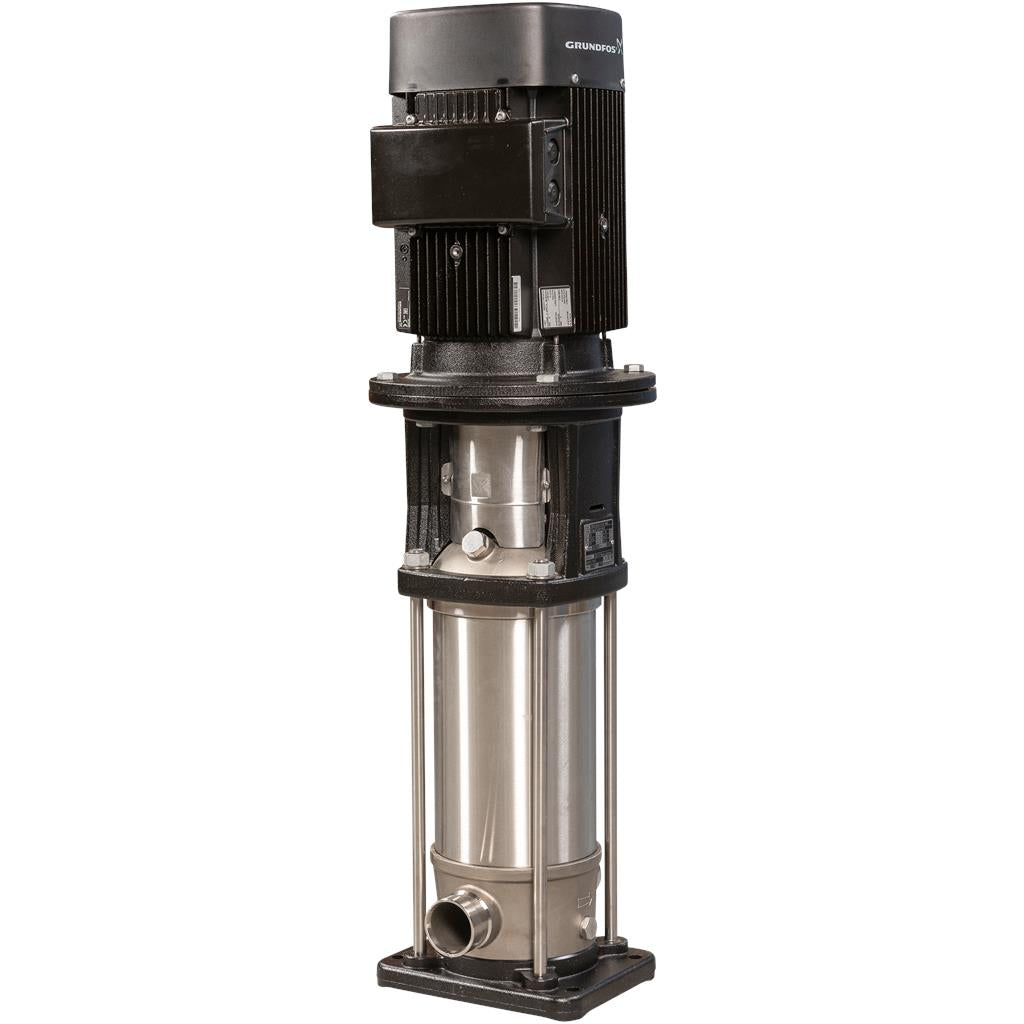

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2750 rpm |

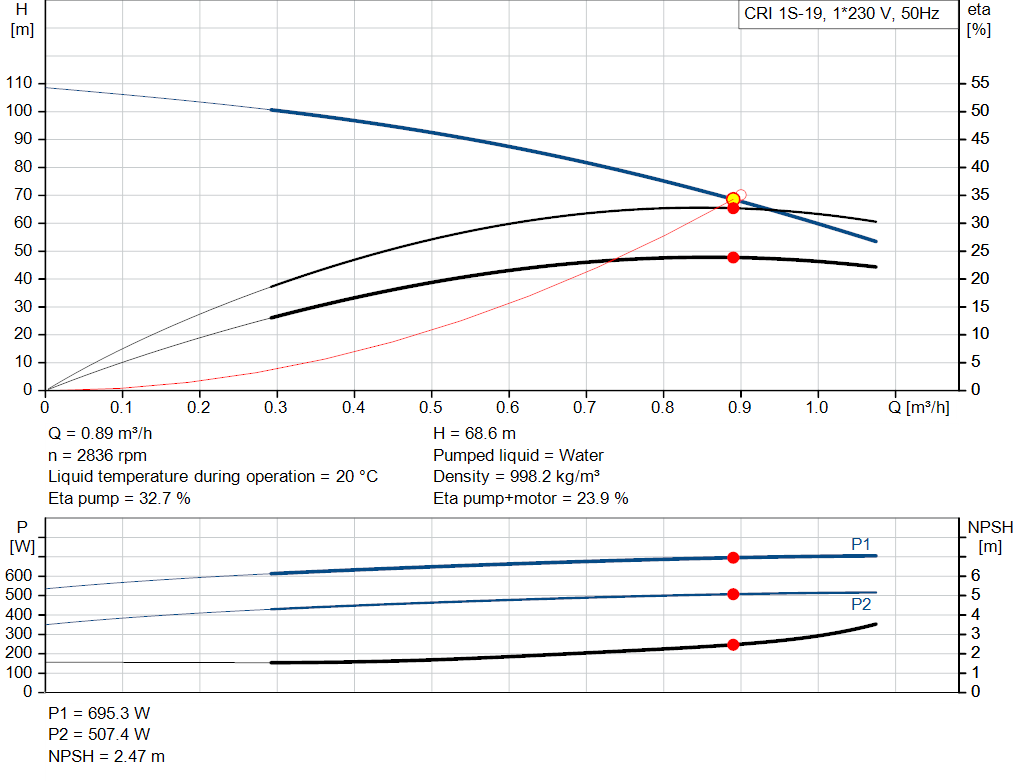

| Rated flow: | 0.9 m³/h |
| Rated head: | 70.2 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS,ACS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 120 °C |
| 25 bar / -20 °C | |
| Type of connection: | PJE |
| Size of inlet connection: | DN 32 |
| 1 1/4 inch | |
| Size of outlet connection: | DN 32 |
| 1 1/4 inch | |
| Pressure rating for connection: | PN 50 |
| Flange size for motor: | FT100 |

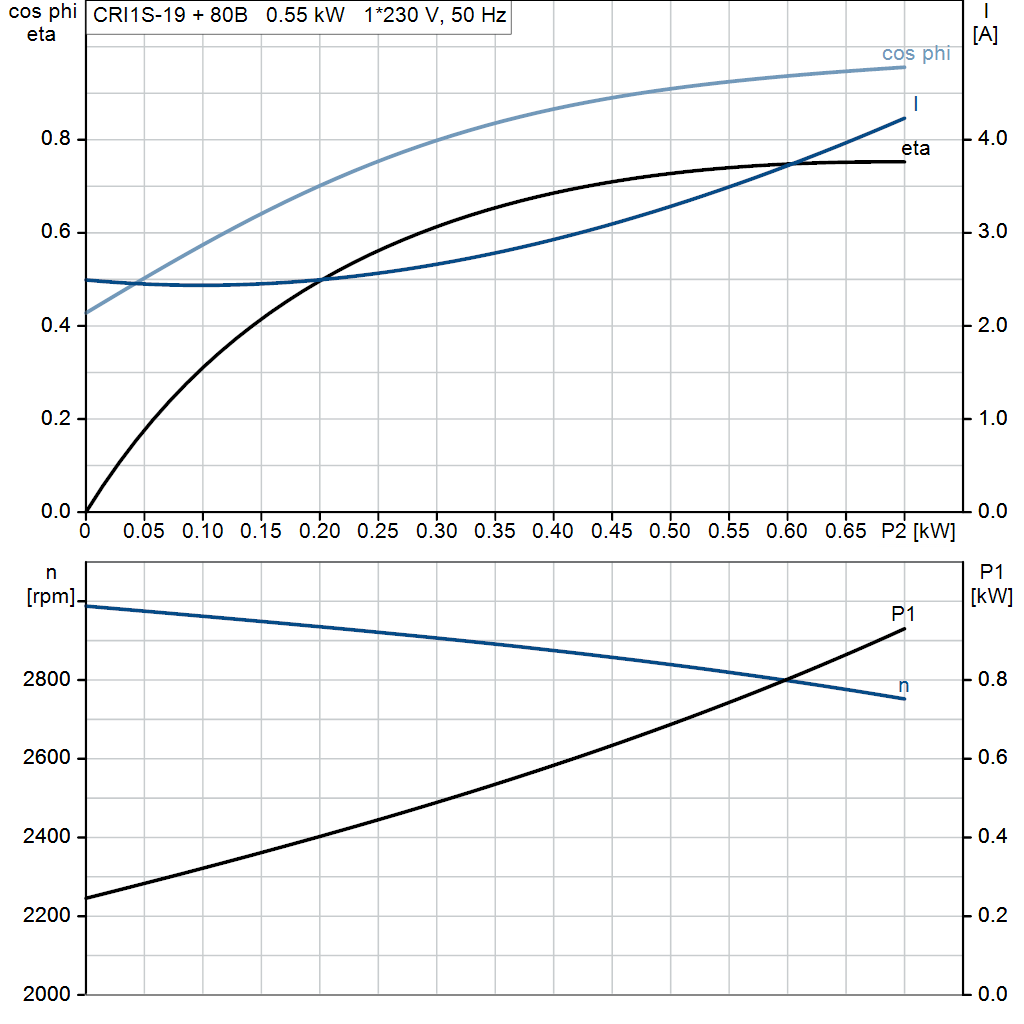

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 80B |
| Rated power - P2: | 0.55 kW |
| Power (P2) required by pump: | 0.55 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 220-230 V |
| Rated current: | 3.70-3.75 A |
| Starting current: | 400-410 % |
| Cos phi - power factor: | 0.96-0.93 |
| Rated speed: | 2800-2820 rpm |
| IE Efficiency class: | IE2 |
| Motor efficiency at full load: | 74.1 % |
| Motor efficiency at 3/4 load: | 72.5-69.4 % |
| Motor efficiency at 1/2 load: | 63.3-59.0 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 92714430 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.54 |
| Net weight: | 26.8 kg |
| Gross weight: | 30.8 kg |
| Shipping volume: | 0.092 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
