CM 10-5 A-R-I-E-AVBE F-A-A-N [98693988]
CM 10-5 A-R-I-E-AVBE F-A-A-N [98693988]
Grundfos
Precio habitual
€2.337,60 EUR
Precio habitual
€2.922,00 EUR
Precio de oferta
€2.337,60 EUR
Precio unitario
/
por
Price excluding VAT
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

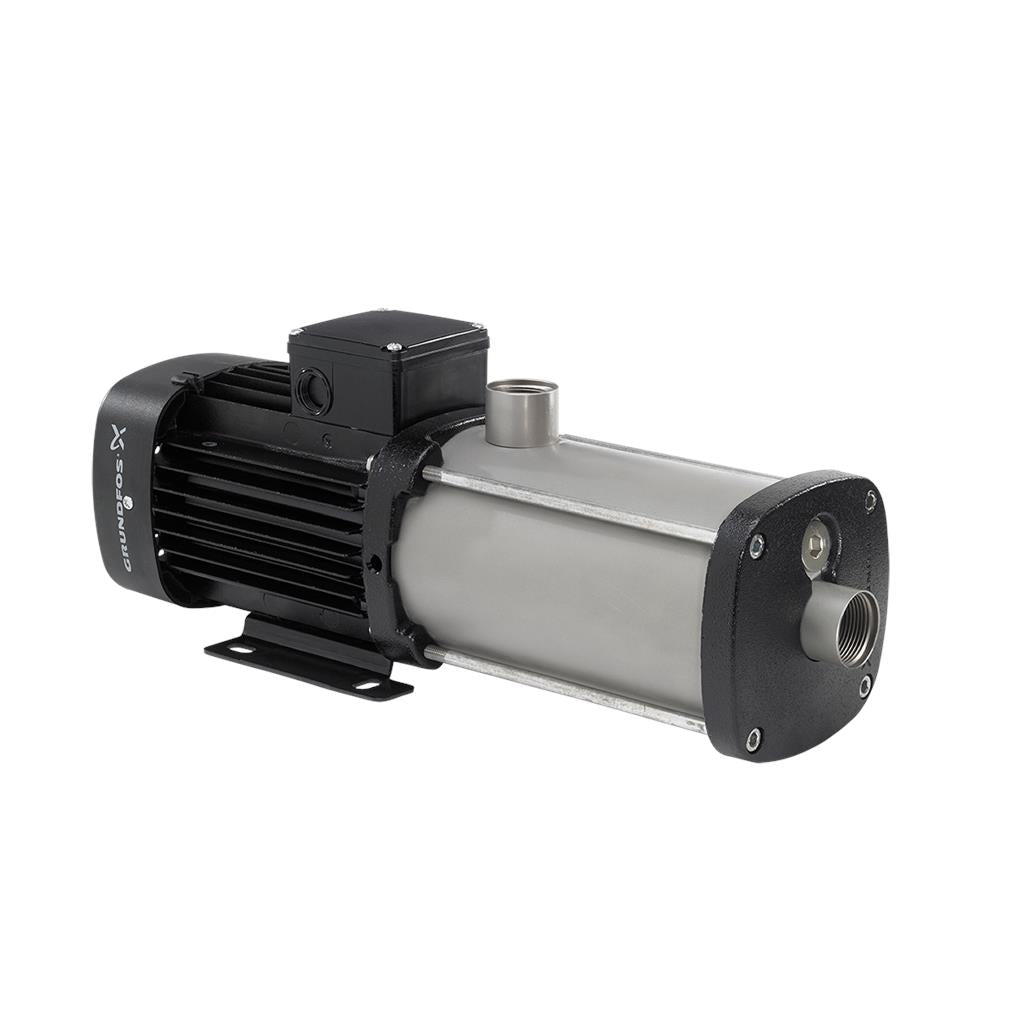

Bomba centrífuga de aspiración axial compacta, fiable, horizontal y multietapas con puerto de aspiración axial y puerto de descarga radial. Las piezas de la bomba destinadas al contacto con el líquido son de acero inoxidable. El cierre mecánico es de junta tórica y no equilibrado, y posee un diseño especial. La conexión de las tuberías se lleva a cabo por medio de roscas de tubería Whitworth internas, Rp (ISO 7/1). La bomba está equipada con un motor asíncrono de 3 fases, refrigerado por ventilador y montado sobre soportes.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

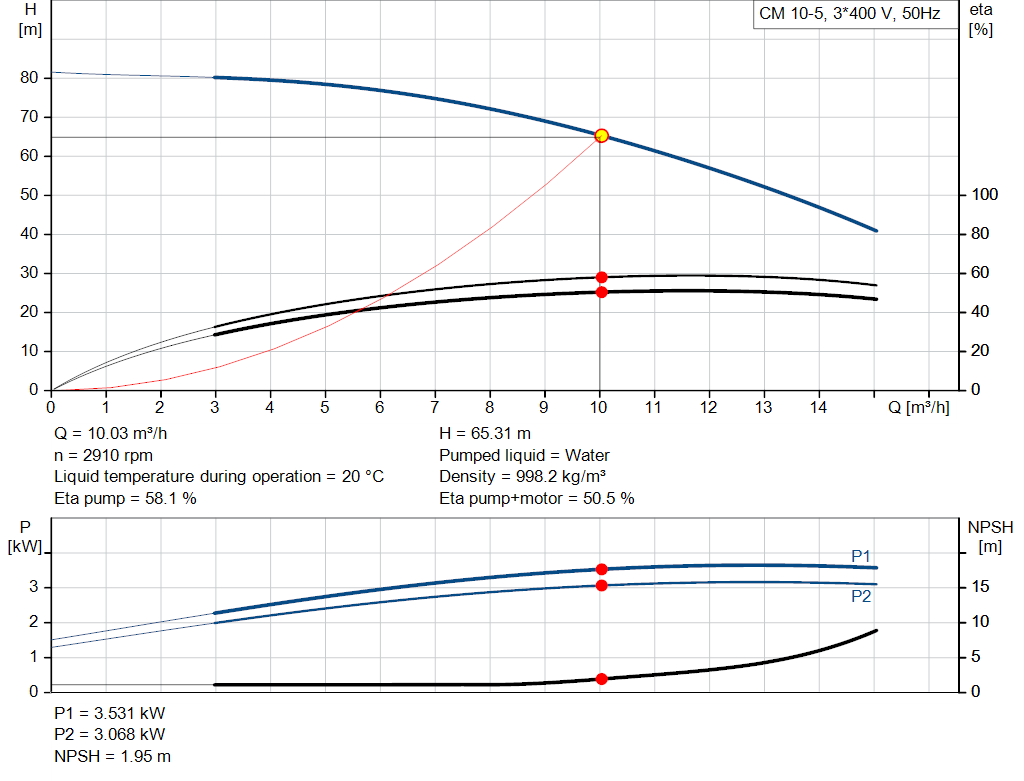

| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 10 m³/h |
| Rated head: | 64.88 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,EAC,UKCA |
| Approvals for drinking water: | ACS,NSF61,UBA |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Pump housing: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 55 °C |
| Maximum operating pressure: | 10 bar |
| Max pressure at stated temp: | 10 bar / 40 °C |

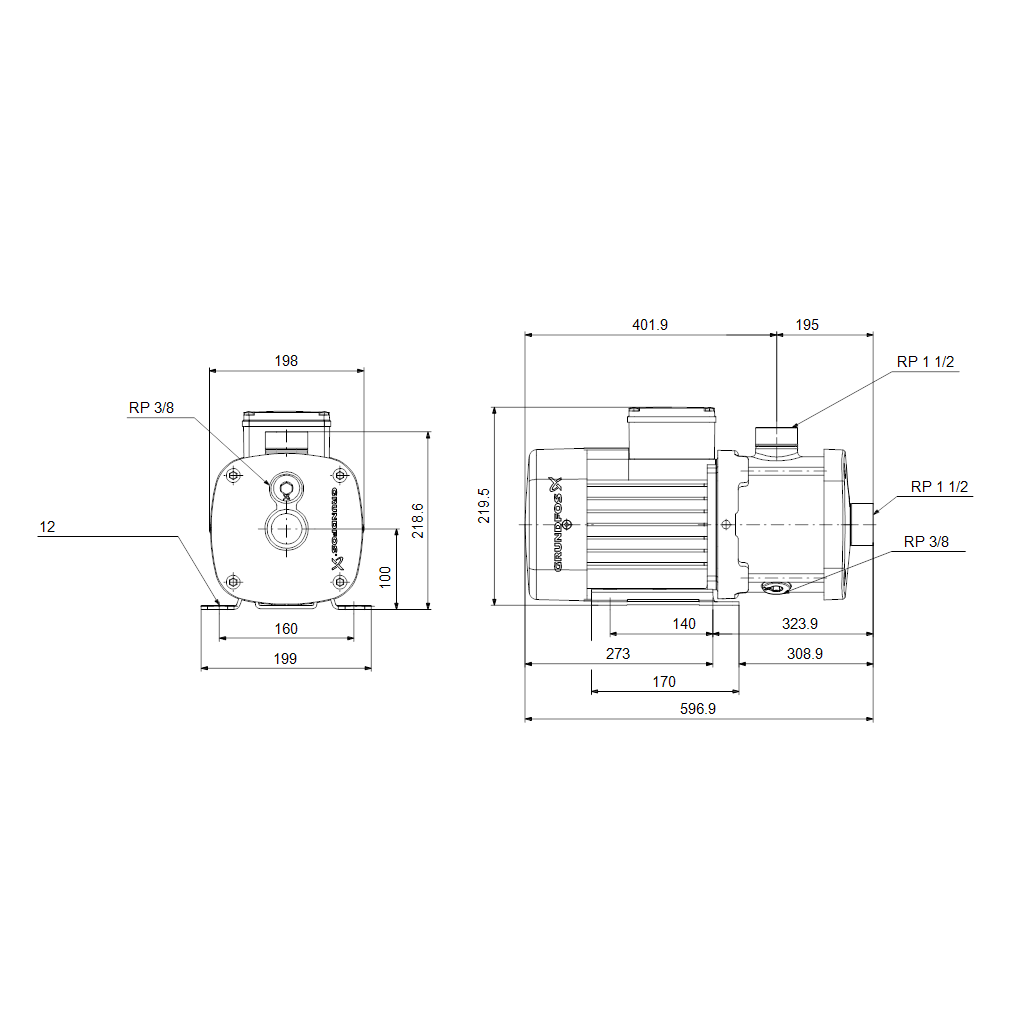

| Type of connection: | Rp |
| Size of inlet connection: | 1 1/2 inch |
| Size of outlet connection: | 1 1/2 inch |
| Outlet position: | 12 |

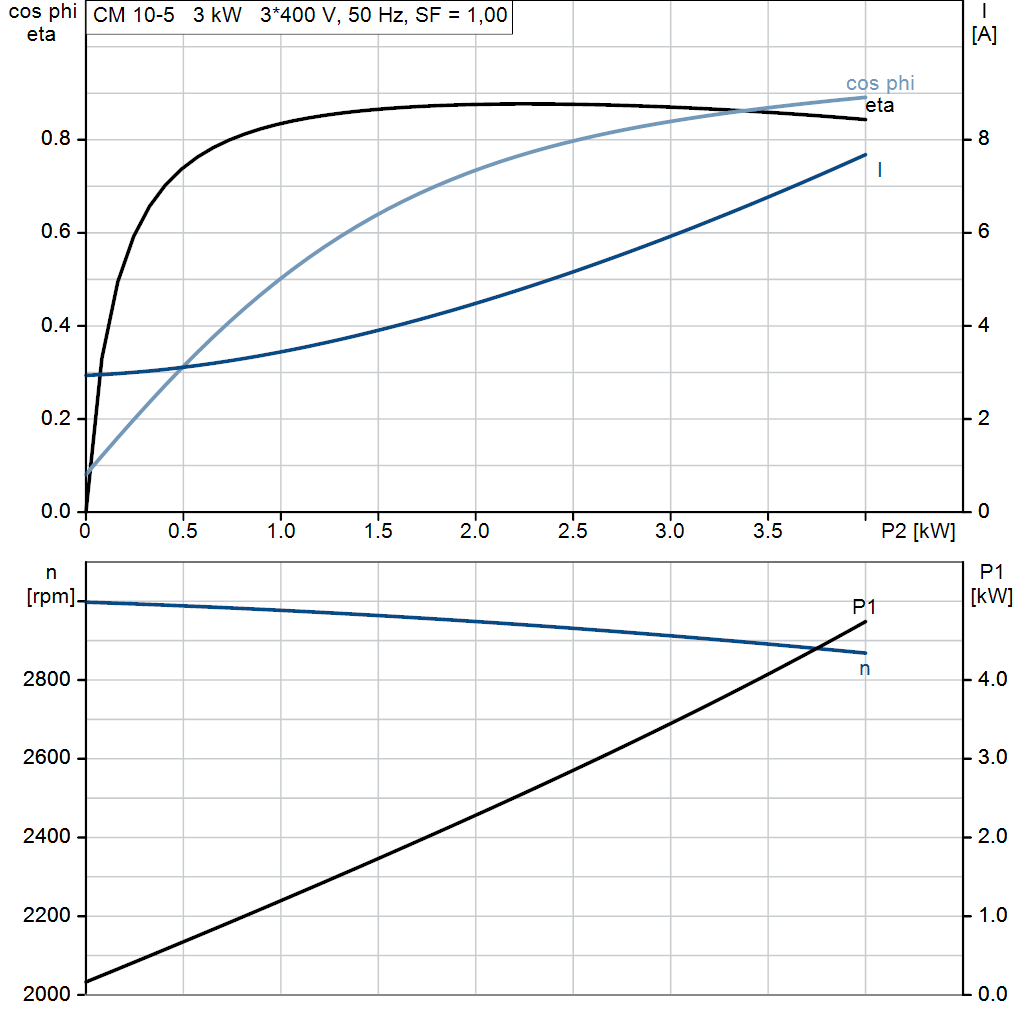

| Electrical data: | |
| Motor standard: | IEC |
| Frame size: | 100LC |
| IE efficiency class: | IE3 |
| Rated power - P2: | 3 kW |
| Mains frequency: | 50 Hz |
| Suitable for 50/60 Hz (Yes/No): | N |
| Rated voltage: | 3 x 220-240D/380-415Y V |
| Service factor: | 1.00 |
| Rated current: | 11,0-11,0/6,30-6,30 A |
| Starting current: | 840-920 % |
| Rated speed: | 2900-2920 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |

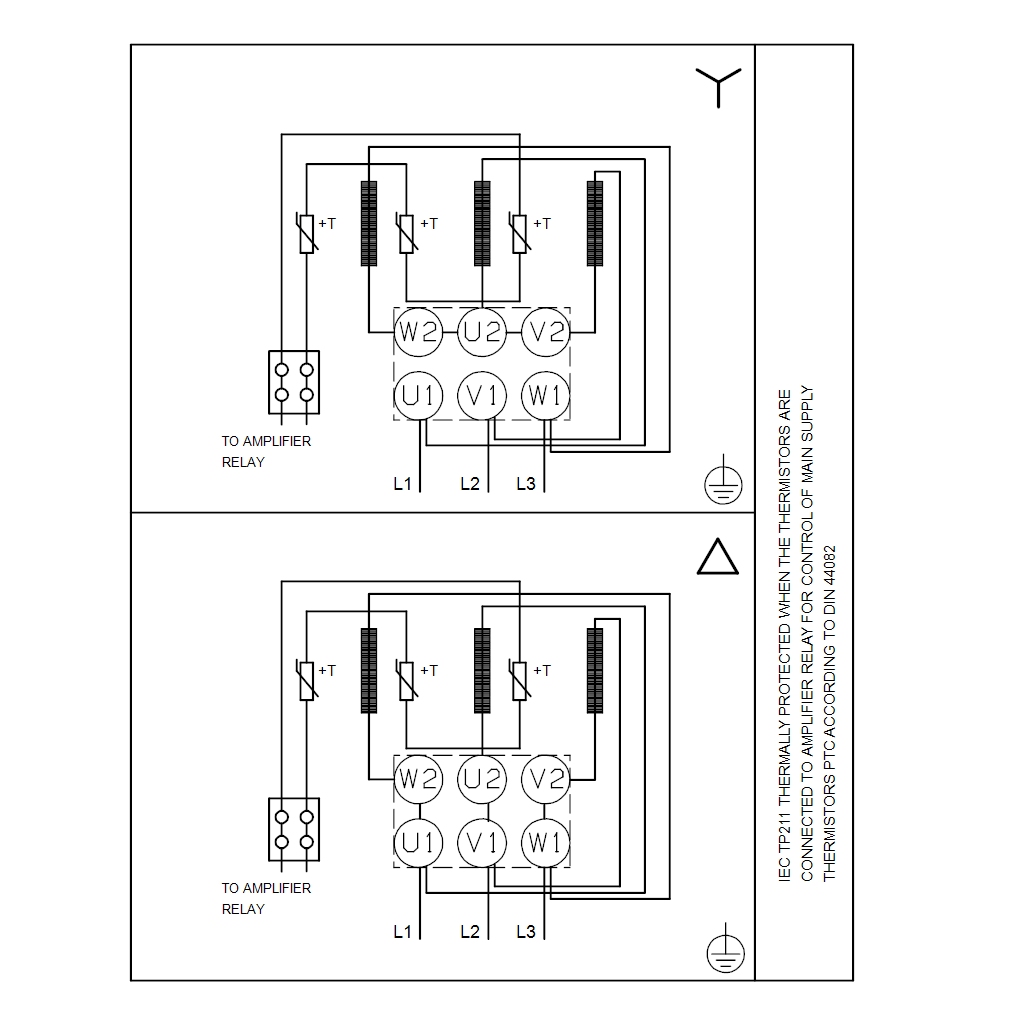

| Built-in motor protection: | PTC |
| Cable included (Yes/No): | N |
| Others: | |
| Terminal box position: | 12 |
| Minimum efficiency index, MEI ≥: | 0.52 |
| Net weight: | 33.3 kg |
| Gross weight: | 35.8 kg |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
